X964M - s-rhd-sop13

Tesla Part Number

1004937-00-B

Connector

MOLEX 33482-6202

Color

GY

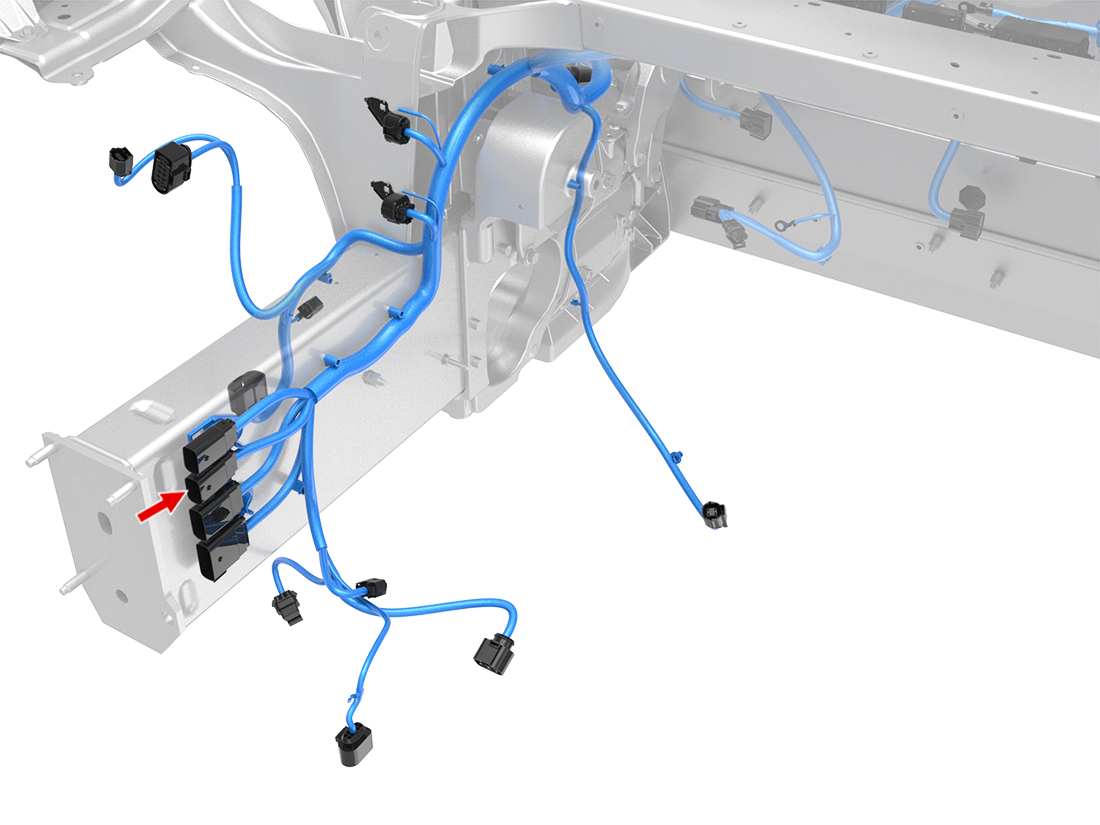

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	GN/WH	0.35	TESLA	MAT-120-240	X020	11
2	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X020	10
3	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X020	2
4	MOLEX	33000-0004	1.5x0.8M	BU/WH	0.35	TESLA	MAT-120-240	X020	24
5	MOLEX	33000-0004	1.5x0.8M	RD/WH	0.35	TESLA	MAT-120-240	X020	9
6	MOLEX	33000-0004	1.5x0.8M	GN/RD	0.35	TESLA	MAT-120-240	X020	1
7
8	MOLEX	33000-0004	1.5x0.8M	RD/BU	0.50	TESLA	MAT-120-240
9	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240
10	MOLEX	33000-0004	1.5x0.8M	BN/WH	0.35	TESLA	MAT-120-240	X581	4
11	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X953F	17
12				BK	0.75	TESLA	MAT-120-240	G510	1
