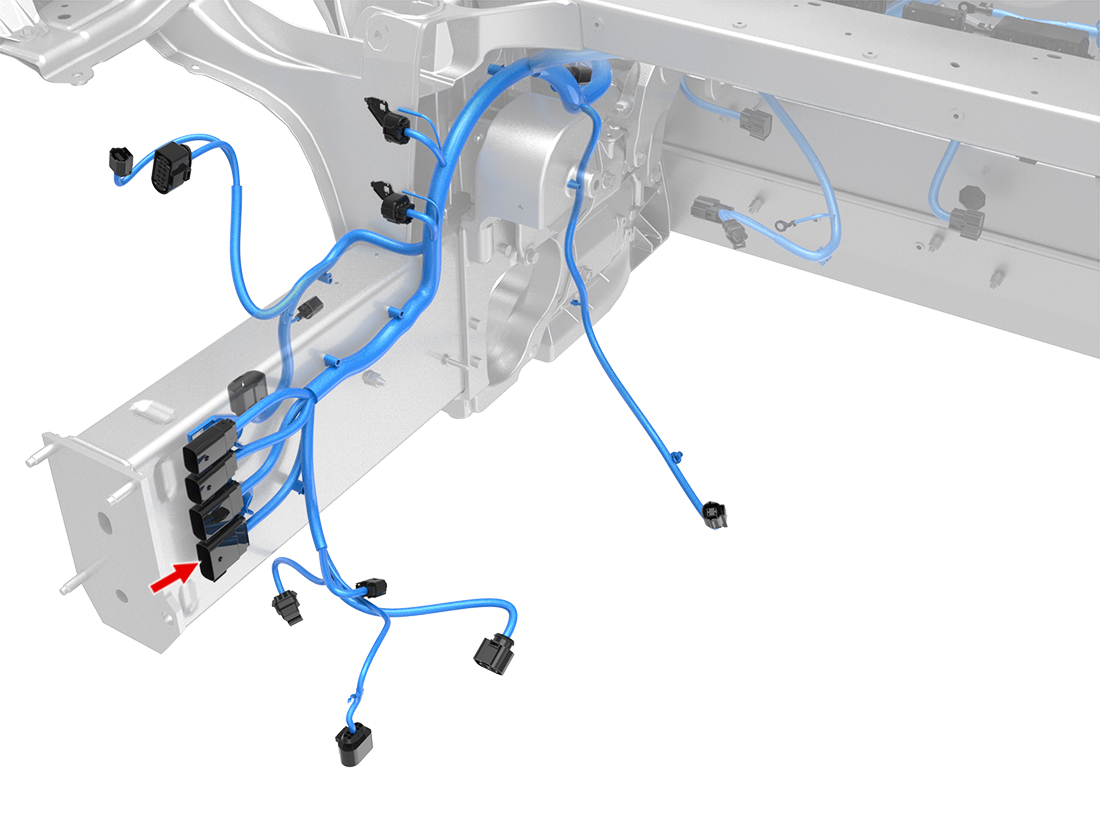

X966M - s-rhd-sop13

Tesla Part Number

1055685-01-A

Connector

MOLEX 33482-2102

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	RD/BU	0.50	TESLA	MAT-120-240	X563	12
2	MOLEX	33000-0004	1.5x0.8M	BU/WH	0.35	TESLA	MAT-120-240	X958M	9
3	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X958M	17
4	MOLEX	33000-0004	1.5x0.8M	RD/BU	0.35	TESLA	MAT-120-240
5	MOLEX	33000-0004	1.5x0.8M	BK/VT	0.35	TESLA	MAT-120-240
6				OG	0.75	TESLA	MAT-120-240	X958M	10
7				OG/BK	0.75	TESLA	MAT-120-240	X958M	11
8
9				VT	0.75	TESLA	MAT-120-240	X955F	20
10				BK	0.75	TESLA	MAT-120-240	G510	1
11	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240
12	MOLEX	33000-0004	1.5x0.8M	RD/GN	0.35	TESLA	MAT-120-240
13	MOLEX	33000-0004	1.5x0.8M	BN/WH	0.35	TESLA	MAT-120-240
14	MOLEX	33000-0004	1.5x0.8M	RD/YE	0.35	TESLA	MAT-120-240
15	MOLEX	33000-0004	1.5x0.8M	BK	0.35	TESLA	MAT-120-240
16
17
18	MOLEX	33000-0004	1.5x0.8M	BK/VT	0.35	TESLA	MAT-120-240	X954F	17
19				RD/GY	0.75	TESLA	MAT-120-240	X955F	12
20				BK	0.75	TESLA	MAT-120-240	G510	1
