X968F - s-rhd-sop13

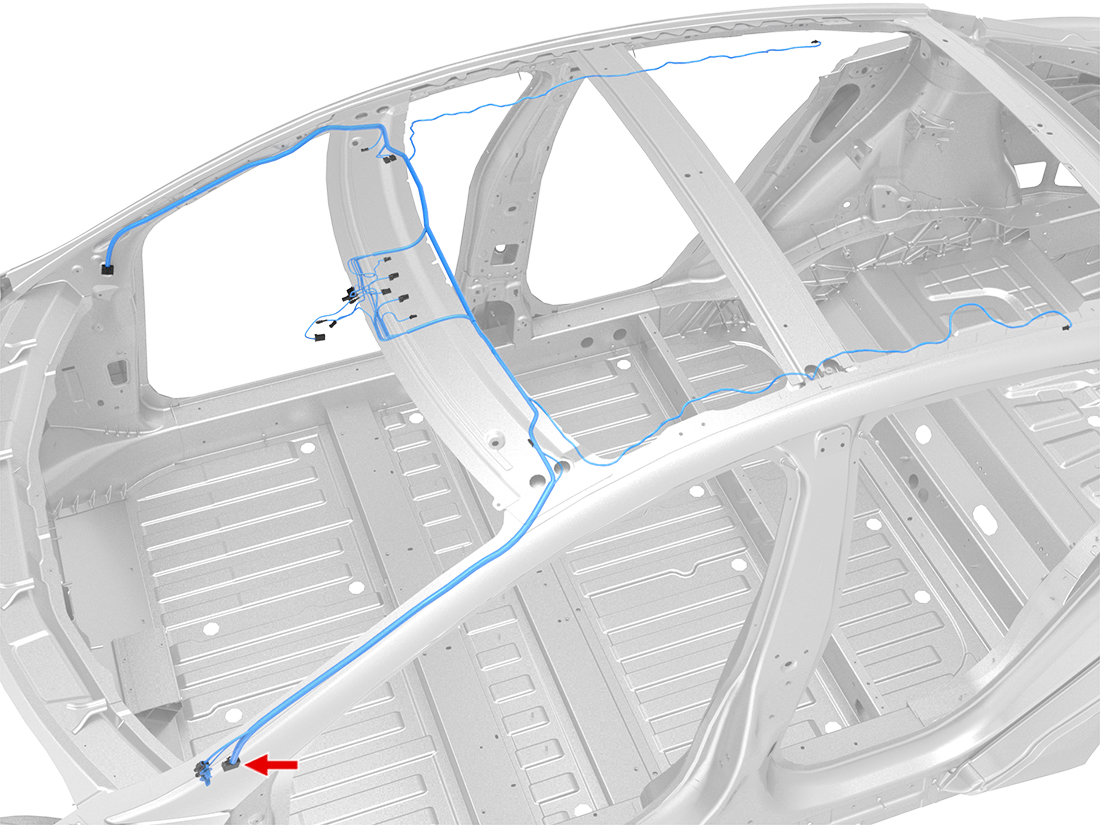

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | BN/WH | 0.35 | X442 | 2 | |||||
| 3 | BK | 0.35 | X442 | 3 | |||||
| 4 | SI | 0.35 | X442 | 1 | |||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | RD/BU | 0.35 | X408A | 1 | |||||
| 8 | RD/GY | 0.35 | X408A | 2 | |||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | |||||||||
| 12 | VT/WH | 0.35 | X441 | 2 | |||||
| 13 | VT | 0.35 | X441 | 3 | |||||
| 14 | SI | 0.35 | X441 | 1 | |||||
| 15 | |||||||||
| 16 | RD/BK | 0.35 | X400 | 1 | |||||
| 17 | GN/RD | 0.35 | X400 | 2 | |||||
| 18 | YAZAKI | 7116-4721-02 | 0.64x0.64F | BU/WH | 0.50 | X143 | 1 | ||
| 19 | |||||||||
| 20 | |||||||||
