X970M - s-rhd-sop13

Tesla Part Number

1039303-00-A

Connector

SUMITOMO 6098-6055

Color

WH

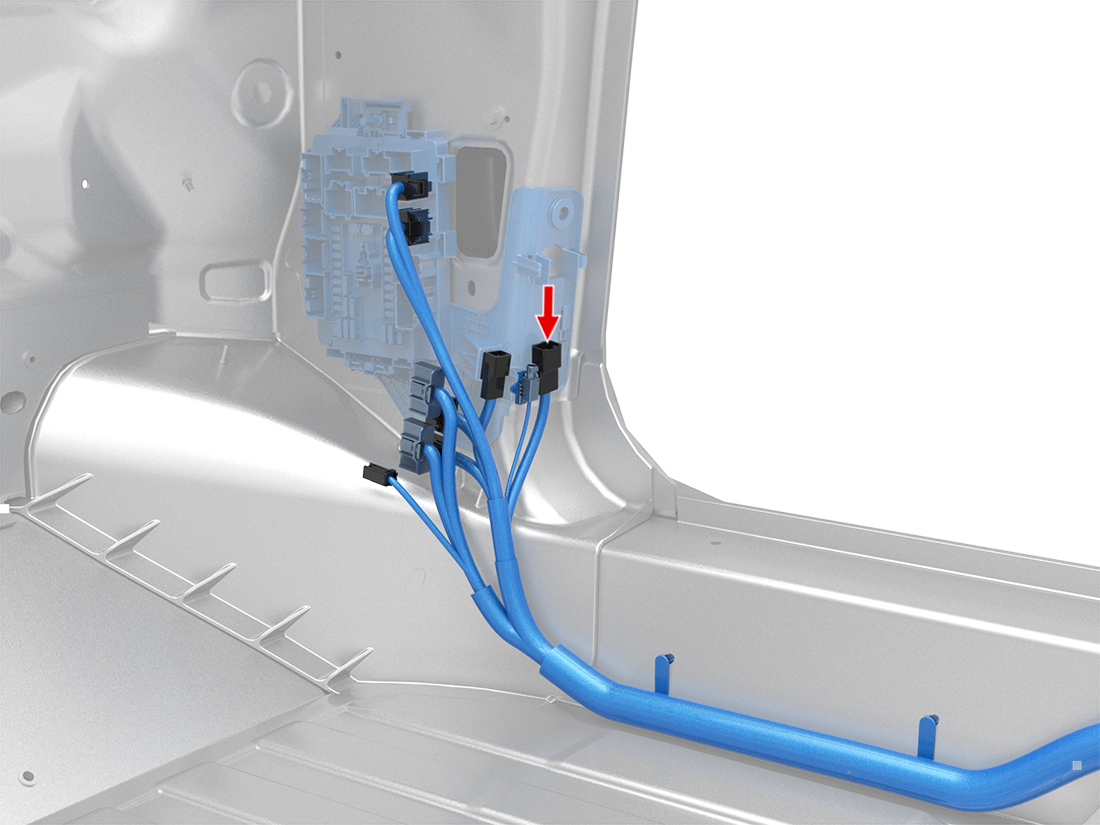

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	OG	1.50			X422	1
2	SUMITOMO	8230-4923	1.5x0.6M	RD	1.50			X946M	10
3	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X141	1
4	SUMITOMO	8100-3623	0.64x0.64M	GY/WH	0.50			X129B	15
5
6	SUMITOMO	8230-4924	1.5x0.6M	BU	0.75			X922M	1
7	SUMITOMO	8230-4924	1.5x0.6M	GN	0.75			X922M	11
8	SUMITOMO	8230-4923	1.5x0.6M	VT	1.50			X422	2
9	SUMITOMO	8230-4923	1.5x0.6M	RD/BK	1.50			X946M	18
10	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X129B	6
11	SUMITOMO	8230-4924	1.5x0.6M	VT	0.75			X922M	2
12	SUMITOMO	8230-4924	1.5x0.6M	BK	0.75			X922M	12
