X976F - s-rhd-sop13

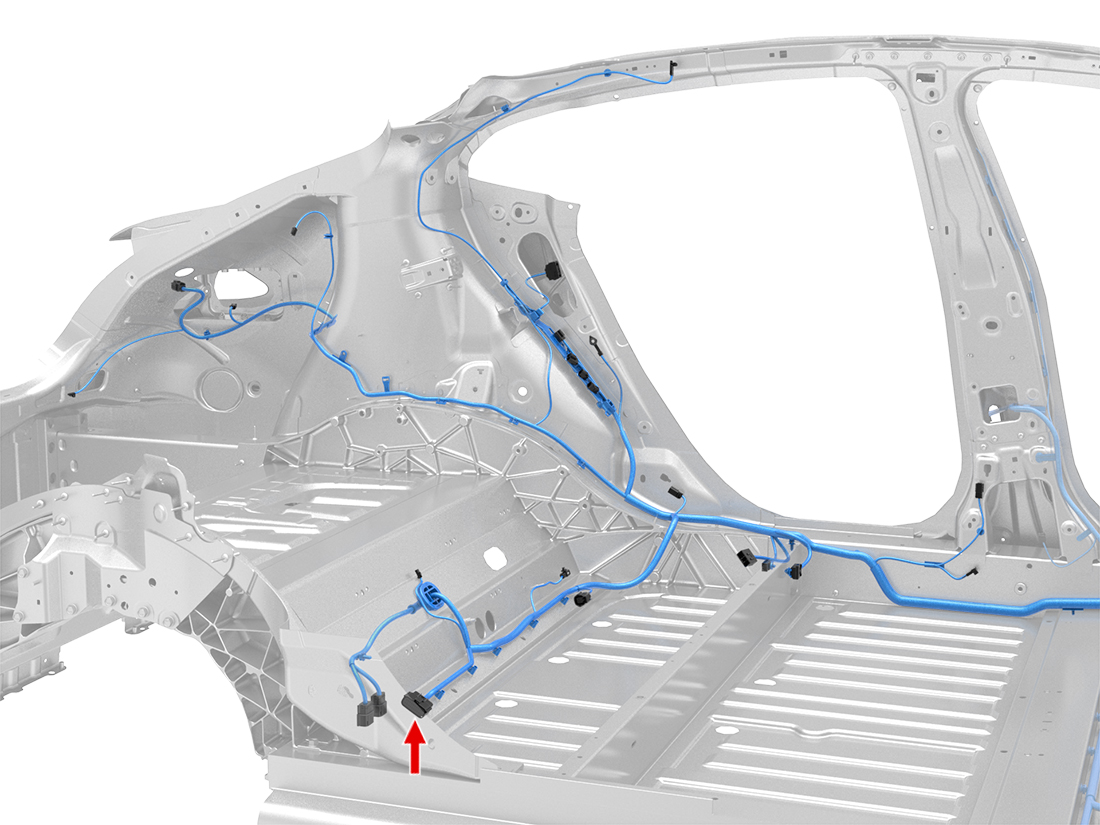

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | OG | 0.35 | TESLA | MAT-120-240 | X290 | 1 |
| 3 | MOLEX | 33012-3004 | 1.5x0.8F | BN/WH | 0.35 | TESLA | MAT-120-240 | X776 | 11 |
| 4 | MOLEX | 33012-3004 | 1.5x0.8F | RD/WH | 0.35 | TESLA | MAT-120-240 | X778 | 2 |
| 5 | MOLEX | 33012-3004 | 1.5x0.8F | GN/WH | 0.35 | TESLA | MAT-120-240 | X778 | 10 |
| 6 | MOLEX | 33012-3004 | 1.5x0.8F | VT | 0.35 | TESLA | MAT-120-240 | ||
| 7 | MOLEX | 33012-3004 | 1.5x0.8F | WH/BK | 0.35 | TESLA | MAT-120-240 | X044 | 2 |
| 8 | MOLEX | 33012-3004 | 1.5x0.8F | RD/GY | 0.35 | TESLA | MAT-120-240 | X035 | 4 |
| 9 | MOLEX | 33012-3004 | 1.5x0.8F | RD/YE | 0.50 | TESLA | MAT-120-240 | X036 | 11 |
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | MOLEX | 33012-3004 | 1.5x0.8F | BN | 0.35 | TESLA | MAT-120-240 | X776 | 22 |
| 14 | MOLEX | 33012-3004 | 1.5x0.8F | RD | 0.35 | TESLA | MAT-120-240 | X778 | 13 |
| 15 | MOLEX | 33012-3004 | 1.5x0.8F | GN | 0.35 | TESLA | MAT-120-240 | X778 | 21 |
| 16 | MOLEX | 33012-3004 | 1.5x0.8F | WH | 0.35 | TESLA | MAT-120-240 | ||
| 17 | |||||||||
| 18 | MOLEX | 33012-3004 | 1.5x0.8F | GY | 0.50 | TESLA | MAT-120-240 | X035 | 1 |
| 19 | MOLEX | 33012-3004 | 1.5x0.8F | YE/WH | 0.50 | TESLA | MAT-120-240 | X953M | 11 |
| 20 | |||||||||
