X978M - s-rhd-sop13

Tesla Part Number
1042622-00-A
Connector
SUMITOMO 6098-0822
Color
WH

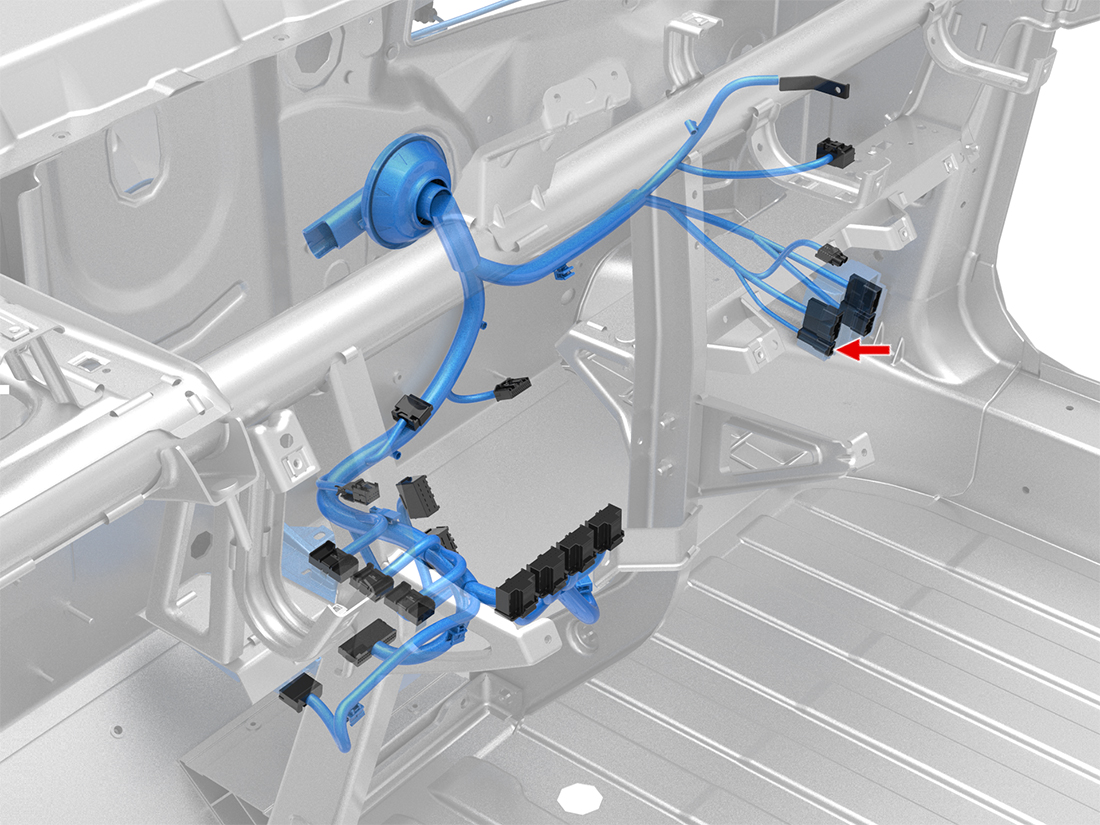

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8230-45424.8x0.8MRD/GN2.50X5639
