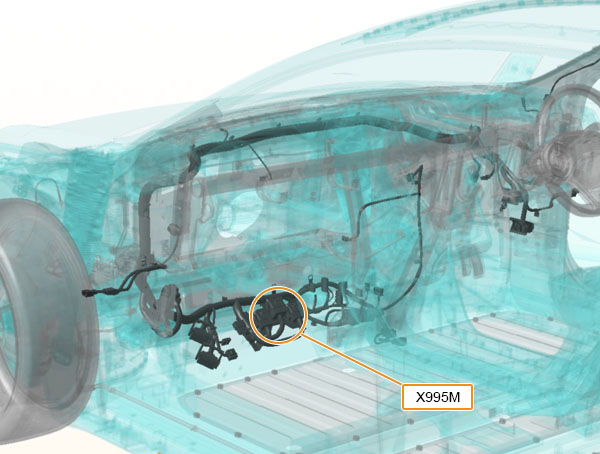

X995M - s-rhd-sop13

Tesla Part Number

1055685-00-A

Connector

MOLEX 33482-2101

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	YE/WH	0.35	TESLA	MAT-120-240	X325	3
2	MOLEX	33000-0004	1.5x0.8M	RD/BU	0.50	TESLA	MAT-120-240	X325	22
3	MOLEX	33000-0004	1.5x0.8M	RD/WH	0.35	TESLA	MAT-120-240	X325	12
4	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X325	2
5	MOLEX	33000-0004	1.5x0.8M	BU/WH	0.35	TESLA	MAT-120-240	X325	30
6	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X325	20
7	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X325	11
8	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X325	21
9	MOLEX	33000-0004	1.5x0.8M	OG	0.35	TESLA	MAT-120-240	X325	1
10	MOLEX	33000-0004	1.5x0.8M	BK/GY	0.50	TESLA	MAT-120-240	X325	13
11				RD	1.00	TESLA	MAT-120-240	X327	1
12	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X325	5
13	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X325	24
14	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X325	14
15	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X325	6
16	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X325	25
17	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X325	15
18	MOLEX	33000-0004	1.5x0.8M	YE/WH	0.35	TESLA	MAT-120-240	X325	23
19	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X325	4
20				BK	1.00	TESLA	MAT-120-240	X327	3
