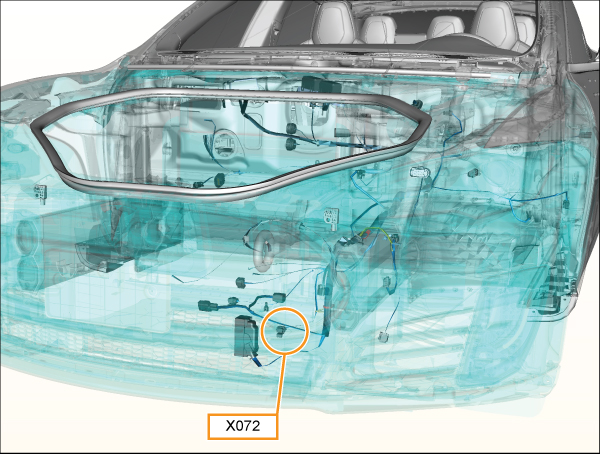

X072 - s-rhd-sop2
Location:
Connector Detail: delphi_12052848
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| A | RD/YE | 0.35 |
| C | BK | 0.5 |
| D | TN/DG | 0.35 |
| F | WH/BN | 0.35 |
2012-2020 Model S Connector Reference
