X139 - s-rhd-sop2

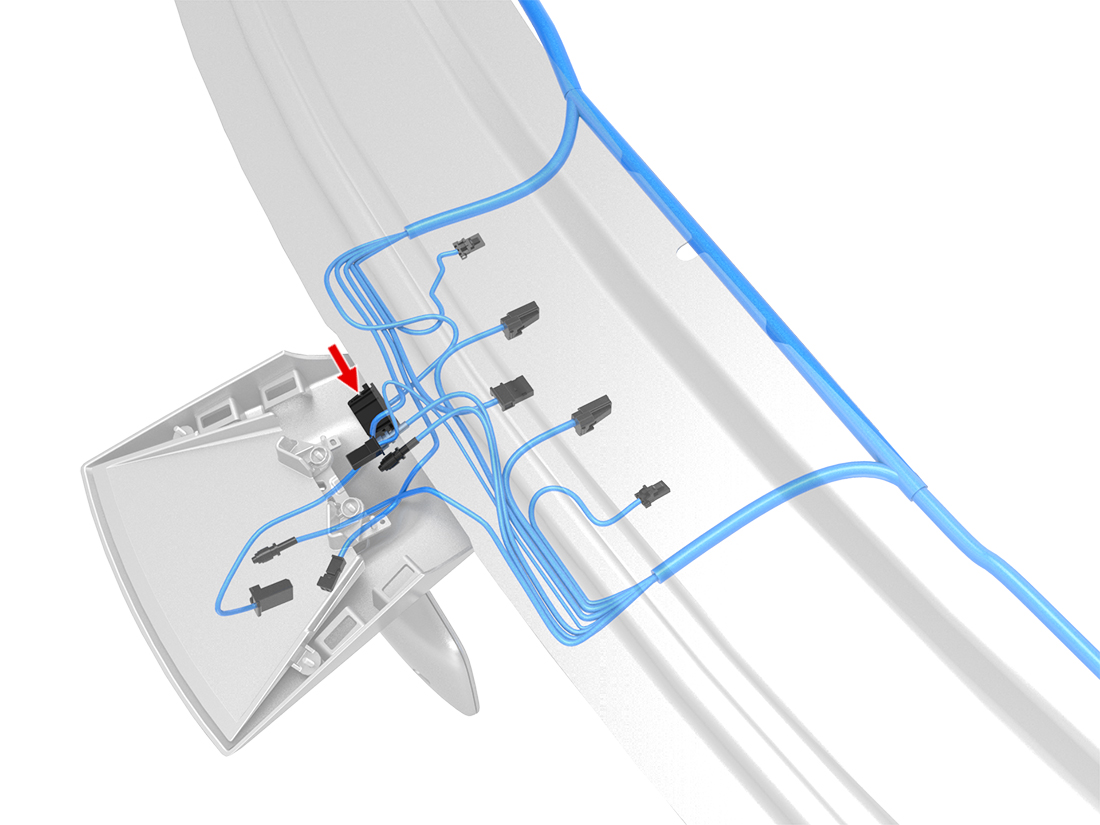

Location:
Connector Detail: amp_1-1743282-2
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.35 |
| 4 | WH/DG | 0.35 |
| 5 | DG | 0.35 |
| 6 | BN | 0.5 |
| 7 | WH/GY | 0.5 |
| 8 | WH/GY | 0.5 |
2012-2020 Model S Connector Reference
