X160 - s-rhd-sop2

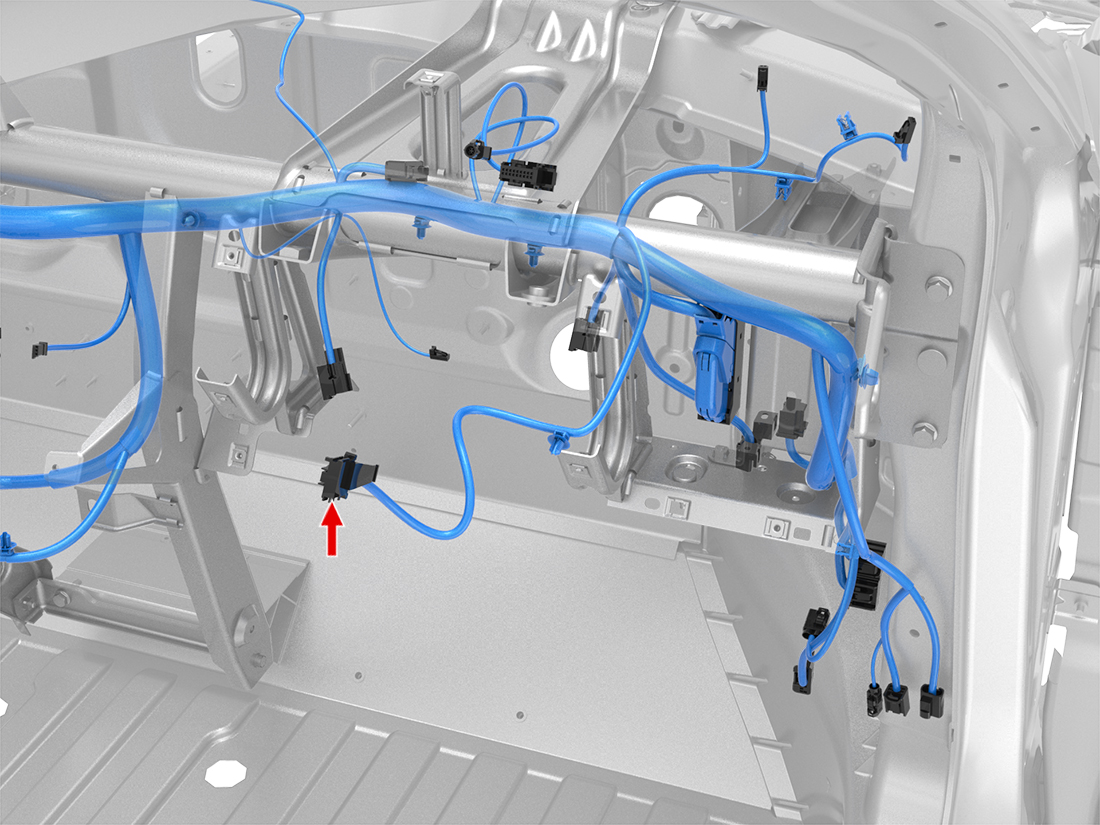

Location:

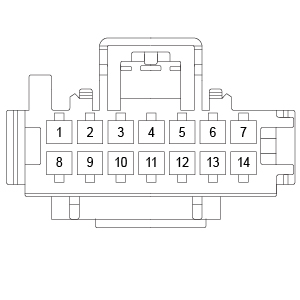

Connector Detail: mbz_a2045401281
Gender:
Color: Yellow
| Cav | Col | Gauge |
|---|---|---|
| 1 | DG | 0.5 |
| 2 | DG/WH | 0.5 |
| 3 | BK | 0.5 |
| 4 | RD/YE | 0.5 |
| 6 | LG/BN | 0.5 |
| 8 | VT/WH | 0.5 |
| 9 | DG/PK | 0.5 |
| 10 | BN/YE | 0.5 |
| 11 | VT/LG | 0.5 |
2012-2020 Model S Connector Reference
