X180 - s-rhd-sop2

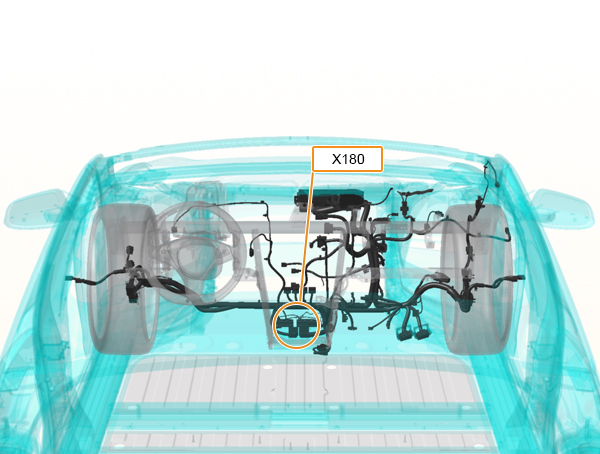

Location:
Connector Detail: amp_7-967312-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | DG | 0.5 |
| 2 | DG/WH | 0.5 |
| 3 | DB/GY | 0.5 |
| 5 | BK/GY | 0.5 |
| 6 | BN/GY | 0.5 |
| 7 | BK/WH | 0.5 |
| 8 | BN/YE | 0.5 |
| 9 | DB/WH | 0.5 |
