X223 - s-rhd-sop2

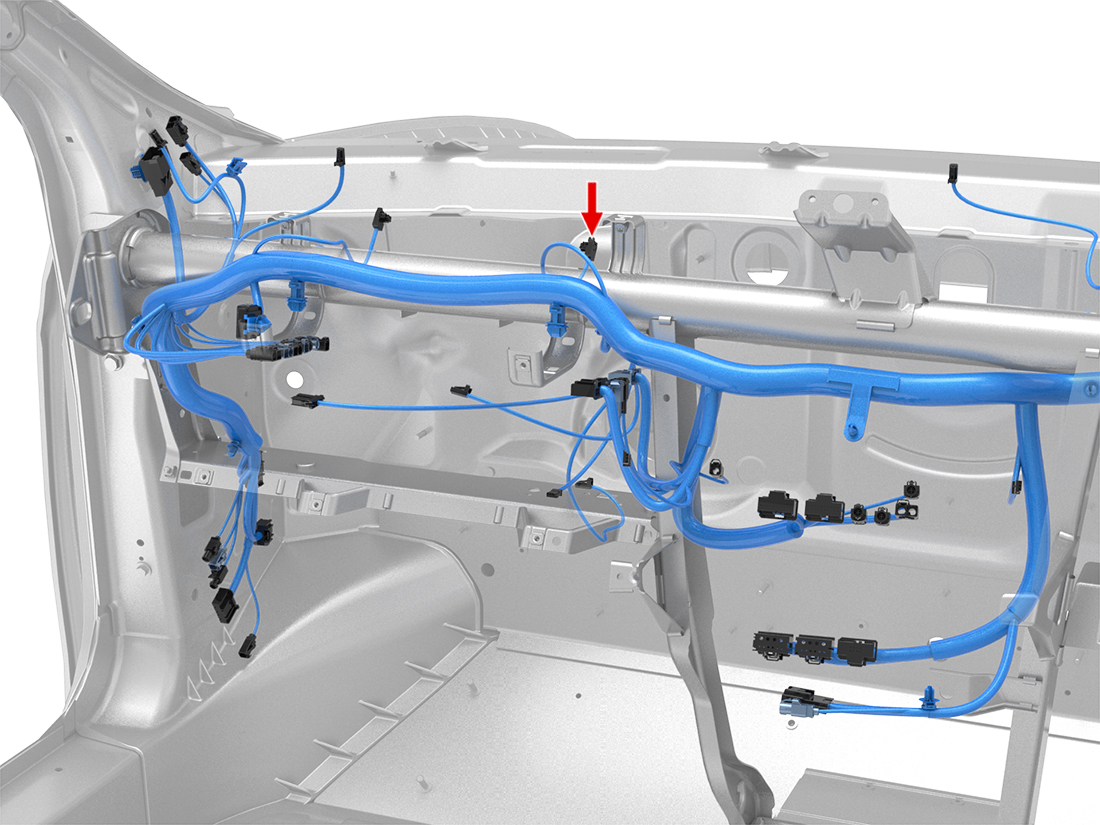

Location:
Connector Detail: amp_1612121-5
Gender:
Color: Orange
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/LG | 0.5 |
| 2 | TN/BN | 0.5 |
2012-2020 Model S Connector Reference
