X393 - s-rhd-sop2

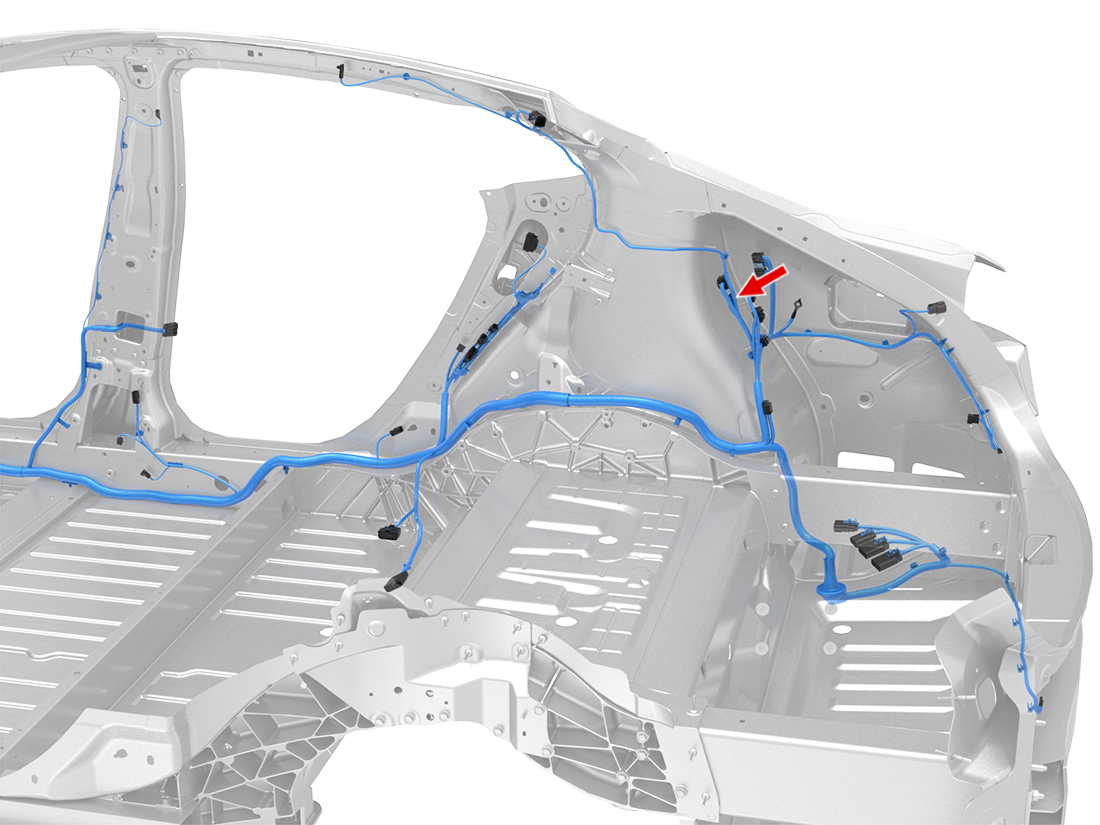

Location:
Connector Detail: jae_mx34020sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT/WH | 0.5 |
| 2 | DB/LB | 0.35 |
| 3 | BN/WH | 0.5 |
| 4 | DG/VT | 0.5 |
| 5 | TN/DG | 0.5 |
| 6 | TN/BK | 0.35 |
| 7 | WH/DG | 0.35 |
| 8 | WH/DB | 0.35 |
| 11 | VT | 0.5 |
| 13 | BN | 0.5 |
| 17 | TN/DB | 0.35 |
| 18 | VT/GY | 0.35 |
