X397 - s-rhd-sop2

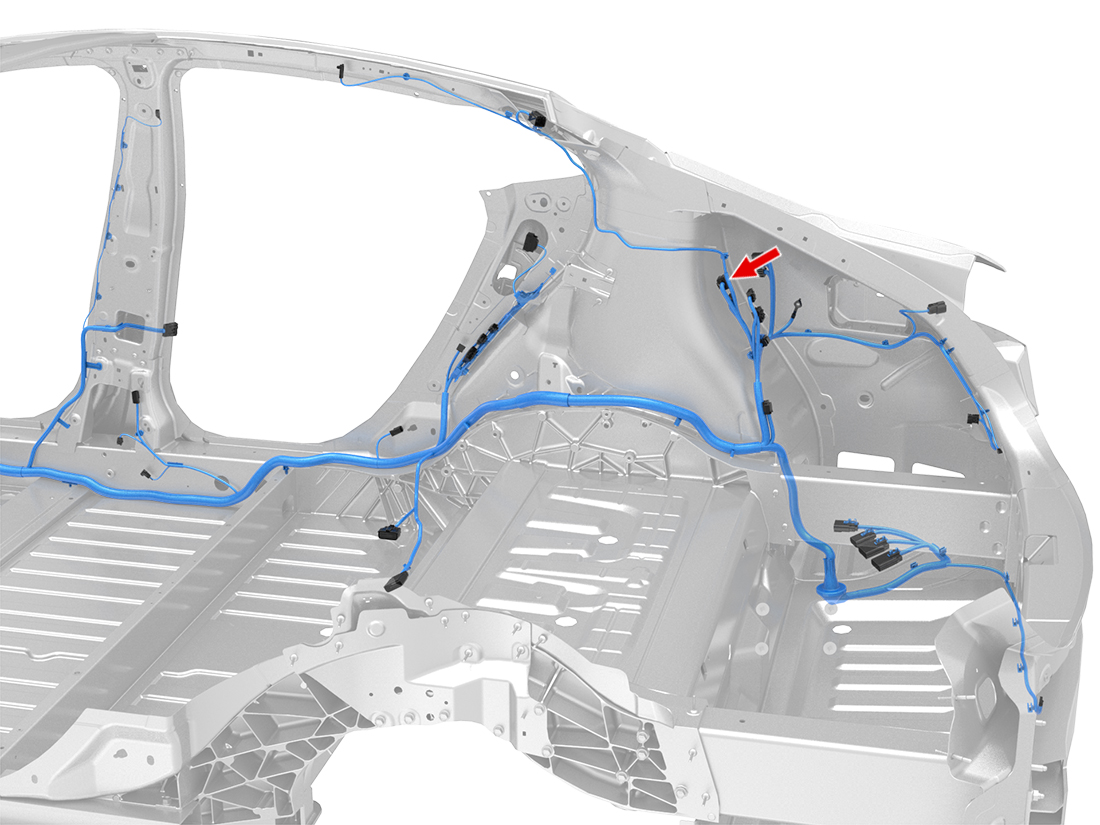

Location:
Connector Detail: molex_31372-1000
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK/WH | 0.5 |
| 2 | WH/VT | 0.35 |
| 4 | WH/OG | 0.35 |
| 5 | TN/OG | 0.5 |
| 6 | TN/DG | 0.5 |
| 7 | BK | 2 |
| 8 | RD/GY | 2 |
| 9 | RD/WH | 2 |
| 10 | BK/WH | 2 |
2012-2020 Model S Connector Reference
