X423 - s-rhd-sop2

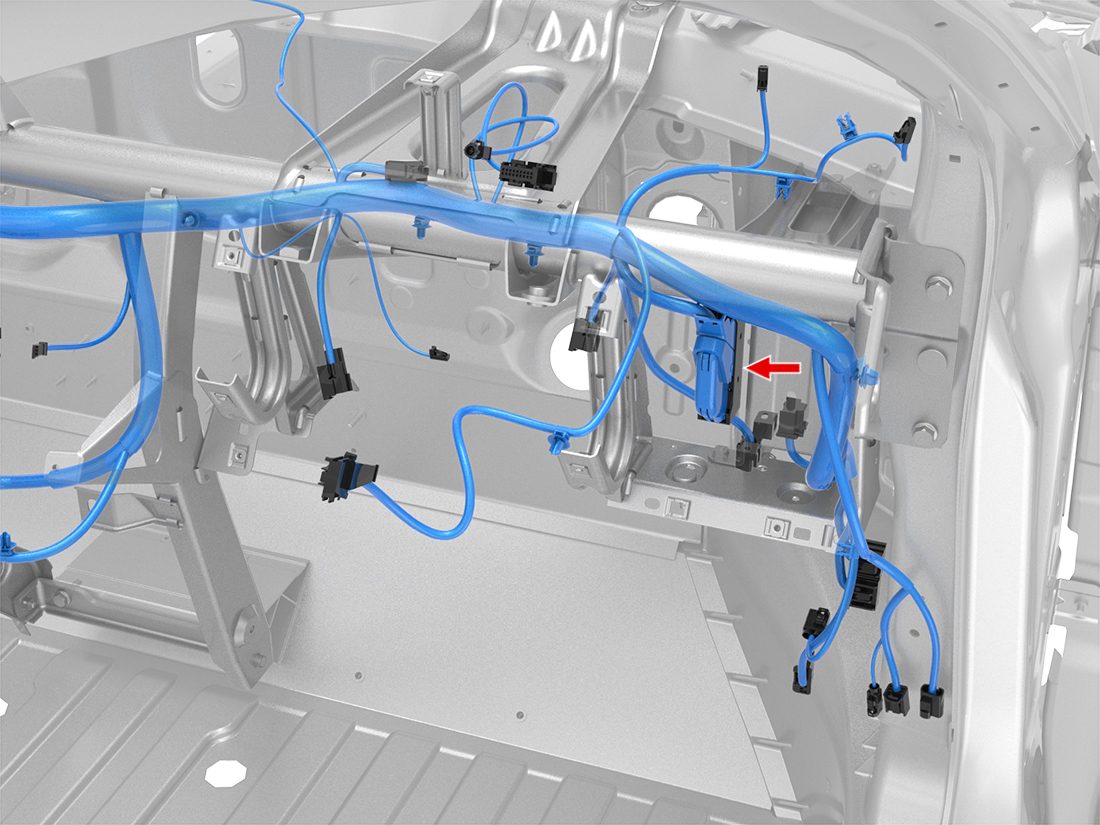

Location:
Connector Detail: amp_1534180-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE/RD | 3 |
| 2 | BK | 3 |
| 3 | WH | 2 |
| 4 | GY | 2 |
| 5 | DB | 2 |
| 6 | LB | 0.75 |
| 7 | LG/BK | 0.75 |
| 11 | WH/DB | 0.35 |
| 12 | WH/BK | 0.35 |
| 15 | WH/BK | 2 |
| 16 | GY/BK | 2 |
| 17 | DB/BK | 2 |
| 18 | LB/BK | 0.75 |
| 19 | LG | 0.75 |
