X553 - s-rhd-sop2

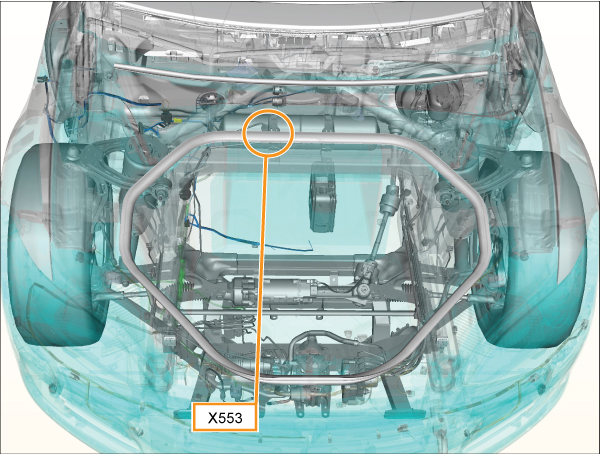

Location:

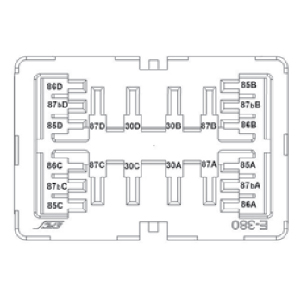

Connector Detail: aees_e380
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 85A | BK | 0.35 |
| 86A | WH/RD | 0.35 |
| 30A | RD/WH | 2 |
| 87A | RD | 2 |
| 85B | BK | 0.35 |
| 86B | YE/BK | 0.35 |
| 30B | RD/BK | 1 |
| 87B | VT | 1 |
| 85C | BK | 0.35 |
| 86C | PK/OG | 0.35 |
| 30C | BN/WH | 2 |
| 87C | BN/OG | 2 |
| 85D | BK | 0.35 |
| 86D | DG | 0.5 |
| 30D | BN | 0.5 |
| 87D | PK | 0.5 |
