X558 - s-rhd-sop2

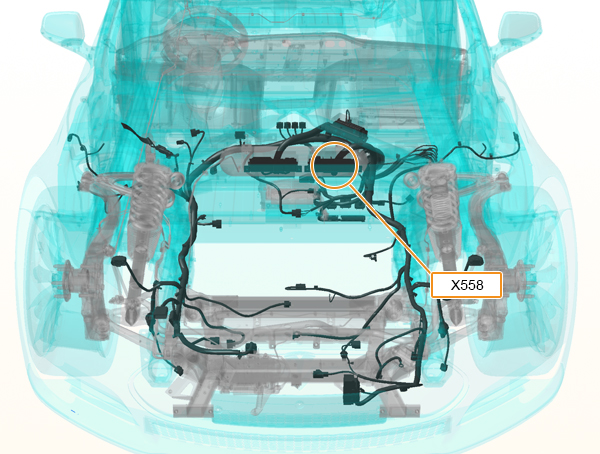

Location:

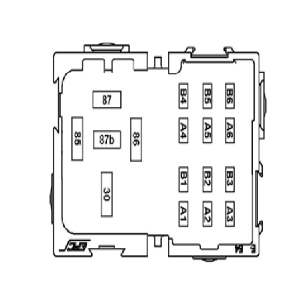

Connector Detail: aees_e1582
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| A1 | RD/BN | 5 |
| A2 | RD/BN | 5 |
| A3 | RD/BN | 5 |
| A4 | RD/WH | 5 |
| A5 | RD/WH | 5 |
| A6 | RD/WH | 5 |
| B1 | YE/RD | 3 |
| B3 | WH/DB | 0.5 |
| B4 | RD/OG | 2 |
| B5 | GY/WH | 3 |
| B6 | RD/LG | 3 |
| 30 | RD/GY | 2 |
| 85 | BK | 0.35 |
| 86 | TN | 0.35 |
| 87 | YE/BN | 2 |
| 87b | RD/BK | 1 |
