X760 - s-rhd-sop2

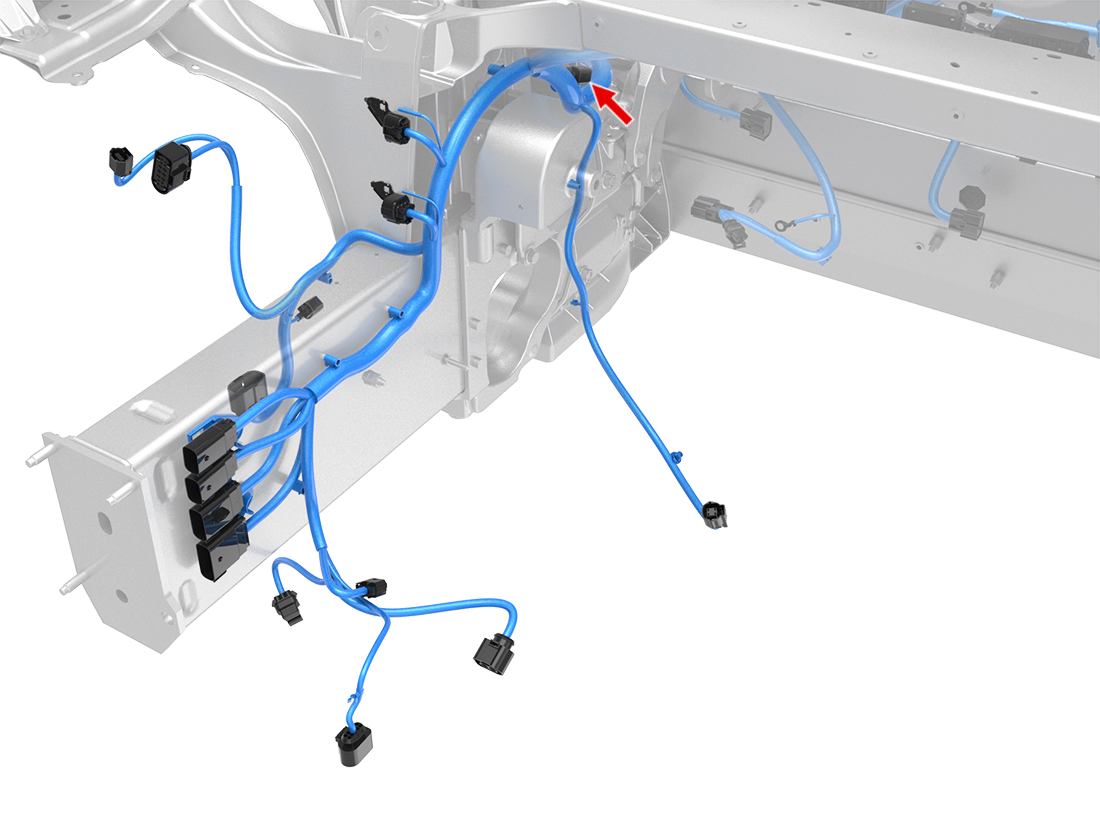

Location:
Connector Detail: yazaki_7283-2764-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | DB | 0.5 |
| 2 | DB | 0.5 |
| 3 | DB | 0.5 |
| 4 | RD | 0.5 |
| 5 | RD | 0.5 |
| 6 | RD | 0.5 |
2012-2020 Model S Connector Reference
