X826J - s-rhd-sop2

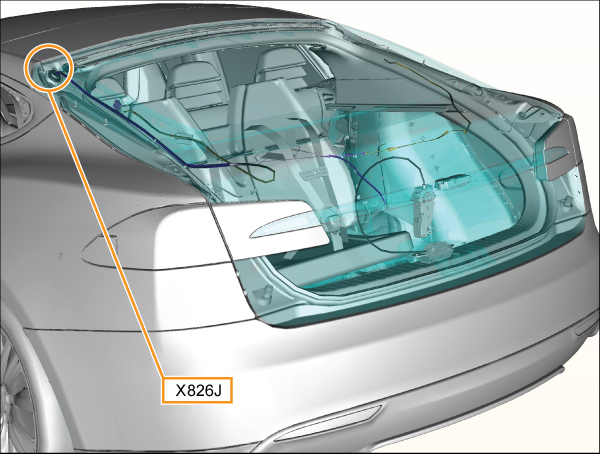

Location:

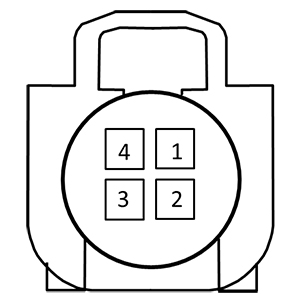

Connector Detail: gen_hsd_jack_a
Gender:
Color: Orange
| Cav | Col | Gauge |
|---|---|---|
| 1 | BU | 0.22 |
| 2 | GN | 0.22 |
| 3 | BN | 0.22 |
| 4 | OG | 0.22 |
2012-2020 Model S Connector Reference
