X860 - s-rhd-sop2

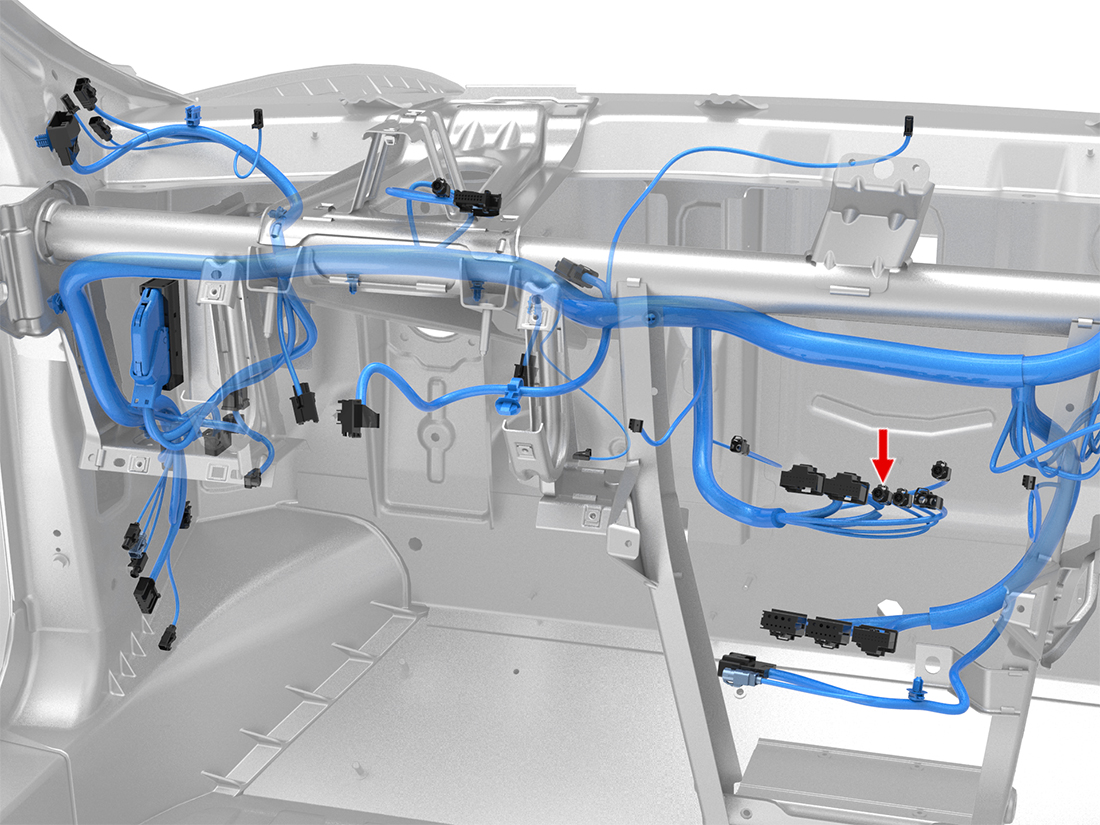

Location:

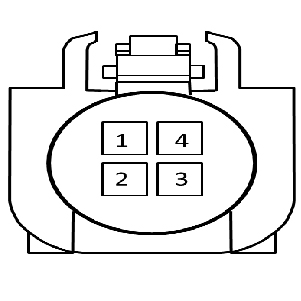

Connector Detail: gen_hsd_plug_a
Gender:
Color: Orange
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/OG | 0.35 |
| 2 | OG/WH | 0.35 |
| 3 | WH/DB | 0.35 |
| 4 | DB/WH | 0.35 |
| SH | SH | 5.01 |
2012-2020 Model S Connector Reference
