X904M - s-rhd-sop2

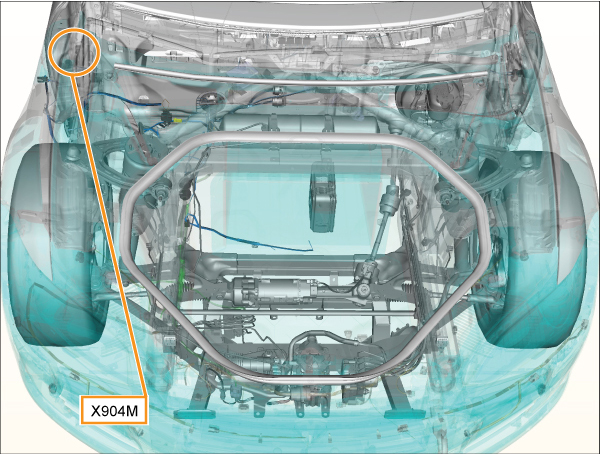

Location:
Connector Detail: amp_1376106-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT/LG | 0.5 |
| 2 | DB/LB | 0.35 |
| 3 | VT | 0.5 |
| 4 | BN/WH | 0.5 |
| 5 | BN | 0.5 |
| 7 | VT/GY | 0.5 |
| 9 | WH/RD | 0.5 |
| 10 | WH/DB | 0.5 |
| 11 | TN/OG | 0.5 |
| 12 | TN/DG | 0.5 |
| 16 | RD/WH | 0.5 |
