X919M - s-rhd-sop2

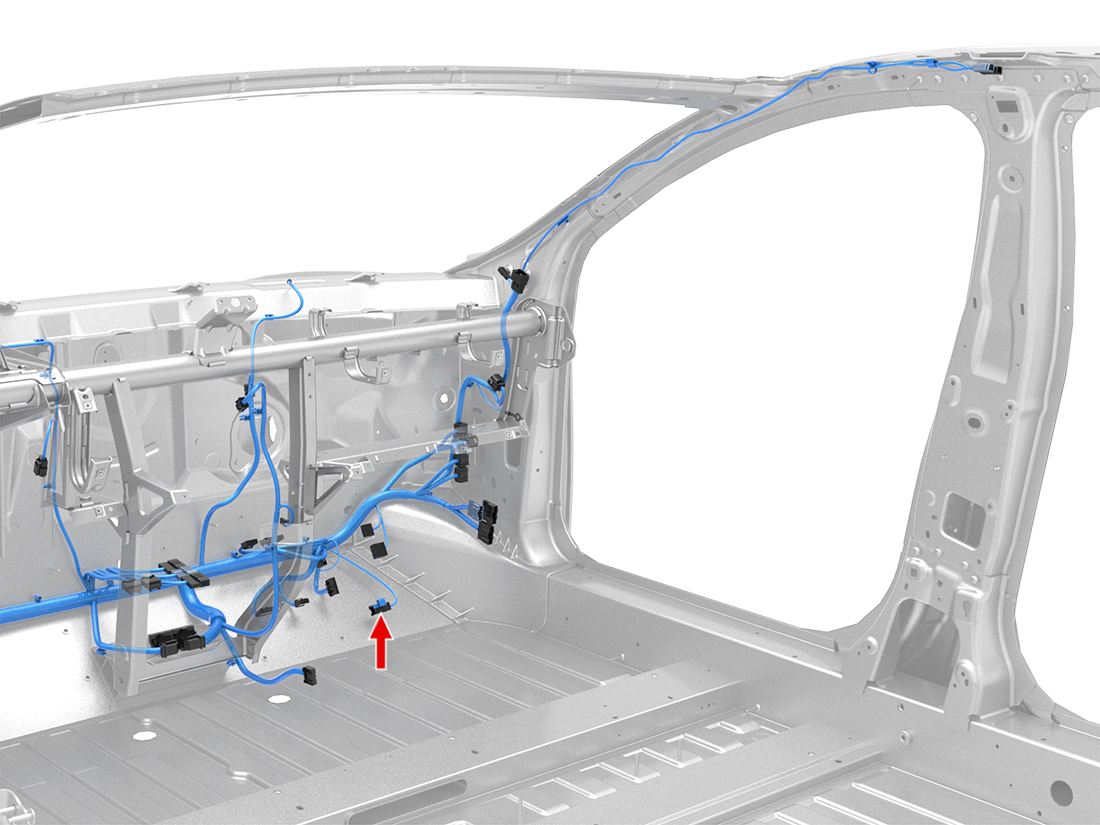

Location:
Connector Detail: yazaki_7282-6446-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE/GY | 2 |
| 2 | BK | 1.5 |
| 3 | BN/WH | 0.5 |
| 4 | BN | 0.5 |
2012-2020 Model S Connector Reference
