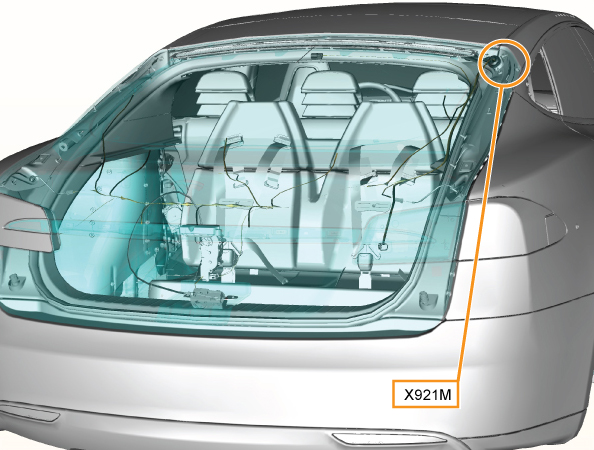

X921M - s-rhd-sop2
Location:
Connector Detail: amp_1376106-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK/WH | 0.5 |
| 2 | GY/WH | 0.35 |
| 3 | TN/OG | 0.5 |
| 4 | TN/DG | 0.5 |
| 4 | TN/DG | 0.35 |
| 5 | VT/DG | 0.35 |
| 5 | DG/VT | 0.5 |
| 8 | VT/GY | 0.5 |
| 9 | VT/LG | 0.5 |
| 10 | VT/WH | 0.5 |
| 11 | DB/WH | 0.5 |
| 12 | LG/BN | 0.5 |
| 14 | TN/DB | 0.5 |
