X922F - s-rhd-sop2

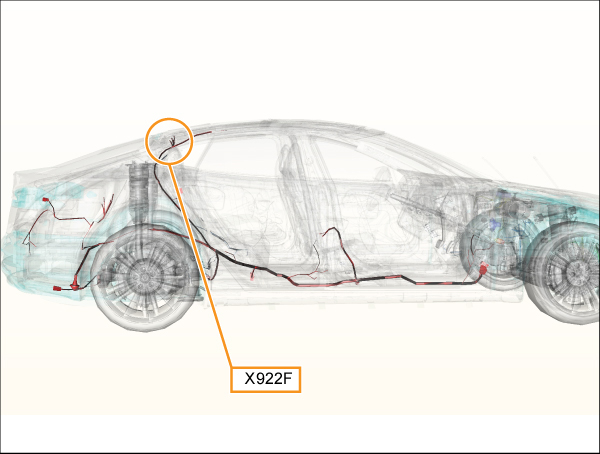

Location:
Connector Detail: amp_1318774-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | TN/DB | 0.5 |
| 2 | VT/GY | 0.5 |
| 3 | BK/WH | 0.5 |
| 4 | TN/OG | 0.5 |
| 5 | DB/LB | 0.35 |
| 6 | TN/DG | 0.5 |
| 7 | TN/BK | 0.5 |
| 8 | VT/WH | 0.5 |
| 9 | VT | 0.5 |
2012-2020 Model S Connector Reference
