X962M - s-rhd-sop2

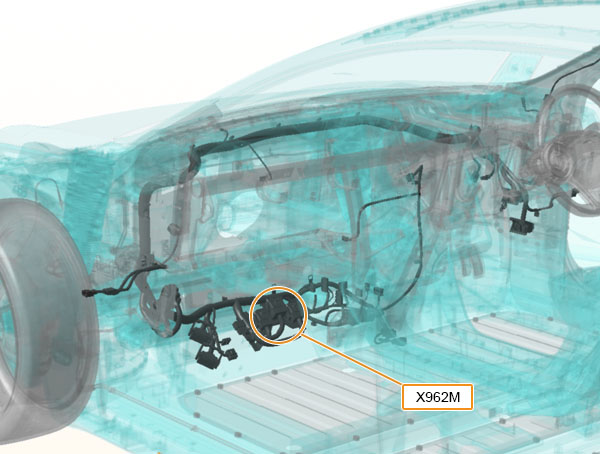

Location:

Connector Detail: delphi_15533173

Gender:

Color: Gray

Cav	Col	Gauge
1	OG	0.5
2	WH	0.5
3	RD/BK	1
4	VT	1
5	RD/WH	2
6	RD/BK	2
7	BN	1
10	VT/LG	0.5
11	BN/YE	0.5
12	VT/OG	0.5
13	WH/LB	0.5
14	TN	0.35
15	WH/VT	0.35
16	RD	0.35
17	DB/OG	0.5
18	DB/BK	0.5
19	PK/BK	0.5
20	DG/BK	0.5
21	WH	0.5
22	BN	0.5
23	DG	0.5
24	OG/BK	0.5
25	WH/OG	0.35
26	TN/DG	0.35
27	LB/BN	0.35
28	PK/BK	0.5
29	DG/DB	0.5
30	PK	0.5
31	RD/DB	0.5
34	RD/BN	0.75
35	LB/BK	0.75
36	WH	2
37	VT	2
38	RD/GY	2
