X967F - s-rhd-sop2

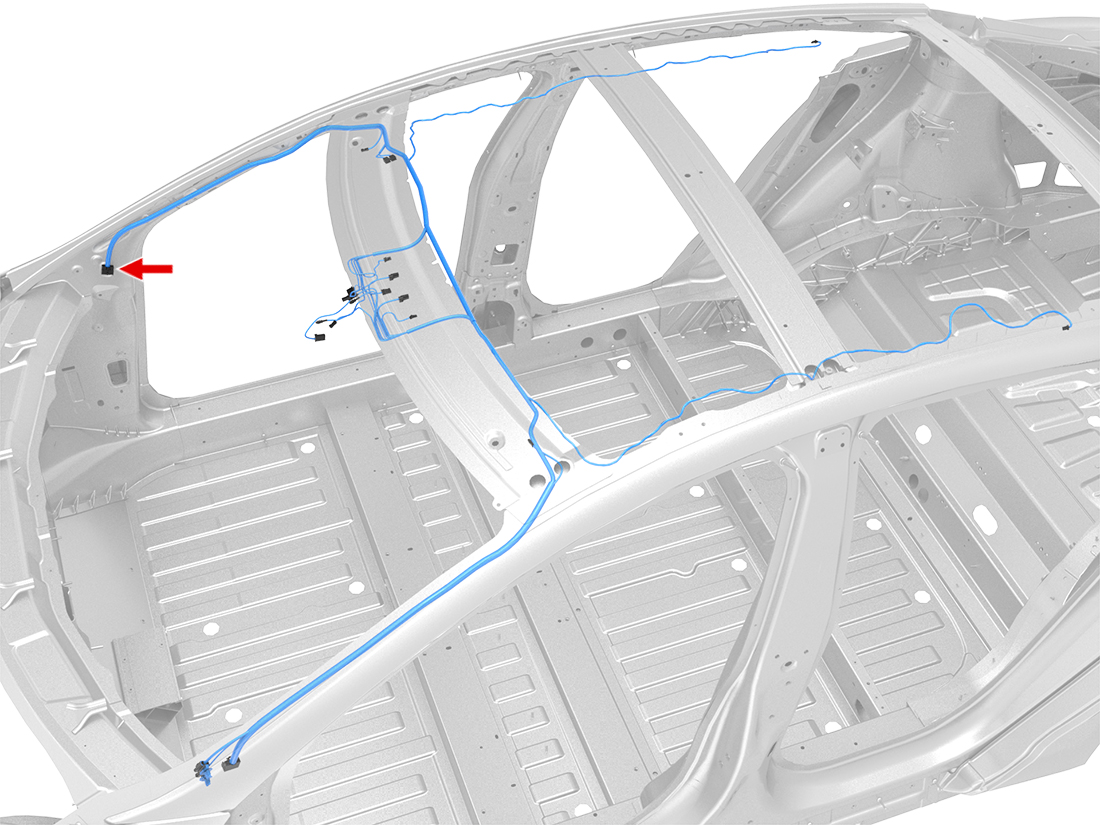

Location:
Connector Detail: yazaki_7283-6388-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 2 | PK/YE | 0.5 |
| 3 | LG/BK | 0.35 |
| 4 | BK/GY | 0.35 |
| 5 | WH/DG | 0.35 |
| 5 | WH/DG | 0.35 |
| 6 | DG | 0.35 |
| 6 | DG | 0.35 |
| 7 | OG | 0.35 |
| 8 | LG | 0.35 |
| 9 | BK | 0.5 |
| 10 | BK | 0.75 |
| 12 | GY/BK | 0.35 |
| 13 | GY | 0.35 |
| 14 | GY/RD | 0.35 |
| 15 | GY/BN | 0.35 |
| 16 | GY/DG | 0.35 |
| 17 | GY/DB | 0.35 |
| 18 | GY/RD | 0.35 |
| 19 | GY/YE | 0.35 |
| 20 | BN | 0.5 |
