X975F - s-rhd-sop2

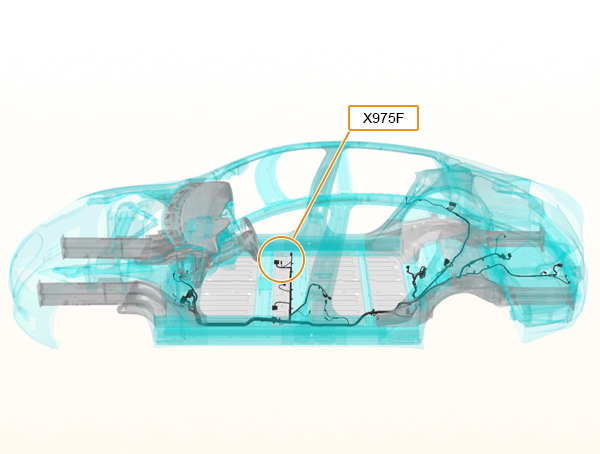

Location:
Connector Detail: molex_33472-1201
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | TN | 0.5 |
| 1 | TN | 0.5 |
| 2 | RD | 0.5 |
| 2 | RD | 0.5 |
| 3 | WH/OG | 0.5 |
| 3 | WH/OG | 0.5 |
| 4 | TN/DG | 0.5 |
| 4 | TN/DG | 0.5 |
| 5 | LB/BN | 0.5 |
| 5 | LB/BN | 0.5 |
| 6 | WH/VT | 0.5 |
| 6 | WH/VT | 0.5 |
| 7 | WH/BN | 0.5 |
| 7 | WH/BN | 0.5 |
| 8 | WH/RD | 0.5 |
| 8 | WH/RD | 0.5 |
| 9 | OG/WH | 0.5 |
| 9 | OG/WH | 0.5 |
| 10 | WH/DG | 0.5 |
| 10 | WH/DG | 0.5 |
| 11 | WH/DB | 0.5 |
| 11 | WH/DB | 0.5 |
| 12 | WH/BK | 0.5 |
| 12 | WH/BK | 0.5 |
