X997F - s-rhd-sop2

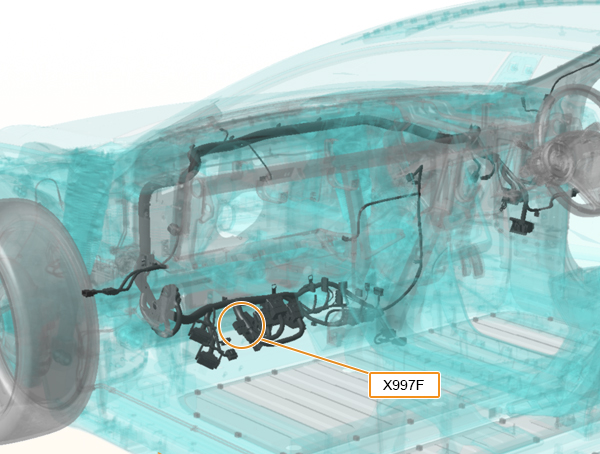

Location:
Connector Detail: yazaki_7283-6388-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 2 | RD/OG | 0.5 |
| 3 | LB/WH | 0.5 |
| 4 | BN/GY | 0.5 |
| 5 | BN/LG | 0.5 |
| 6 | LB/VT | 0.5 |
| 7 | PK/YE | 0.5 |
| 8 | LB/DG | 0.5 |
| 9 | RD | 0.5 |
| 10 | DB | 0.5 |
| 11 | DG/WH | 0.5 |
| 12 | DG | 0.5 |
| 13 | LG/WH | 0.5 |
| 14 | LG/BN | 0.5 |
| 15 | RD/YE | 0.5 |
| 16 | DB/YE | 0.5 |
| 17 | WH | 0.5 |
| 18 | BK | 0.5 |
| 19 | BK/WH | 0.35 |
| 20 | OG/LG | 0.35 |
