X999M - s-rhd-sop2

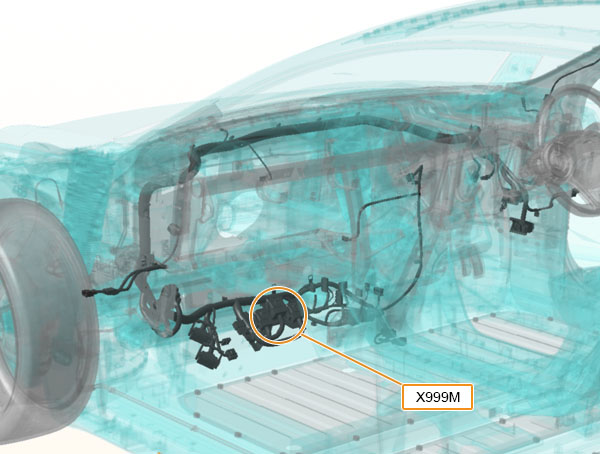

Location:

Connector Detail: delphi_13662874

Gender:

Color: BK

Cav	Col	Gauge
1	RD/BK	0.5
2	PK/RD	0.5
3	WH/RD	0.35
4	OG/BN	0.35
5	RD/OG	0.35
6	RD/YE	0.35
7	RD	0.35
8	BK	0.35
9	RD	0.35
10	SH	3.01
11	BK/GY	0.5
12	BN	0.5
13	PK/RD	0.35
14	DB/GY	0.5
15	DG/RD	0.75
16	DG	0.75
17	PK/DG	0.35
18	RD/DB	0.5
19	LB/RD	0.5
20	VT	1
21	YE/GY	2
22	RD	1
23	BN	1
24	GY	2
25	RD/WH	1
26	TN/RD	0.5
27	LB/DG	0.5
28	WH/DB	0.5
29	YE/BN	2
31	YE/RD	2
32	VT	0.5
33	VT	0.75
34	RD/GY	0.75
35	OG/BK	0.75
36	OG/DG	0.75
37	VT/RD	0.75
38	VT/DG	0.75
39	VT/GY	0.5
40	PK/OG	0.35
41	YE/BK	0.5
42	YE/OG	0.5
44	LG/RD	0.35
45	RD	0.35
46	WH	0.35
47	LG/RD	0.35
48	WH/BN	0.35
49	OG/DG	0.35
50	DB/WH	0.5
51	DG	0.5
52	GY	0.5
53	LG	0.5
54	TN	0.5
55	RD/PK	0.35
56	RD/BK	0.5
57	TN	0.35
58	RD/TN	0.5
59	DG	0.5
