X422 - s-rhd-sop3

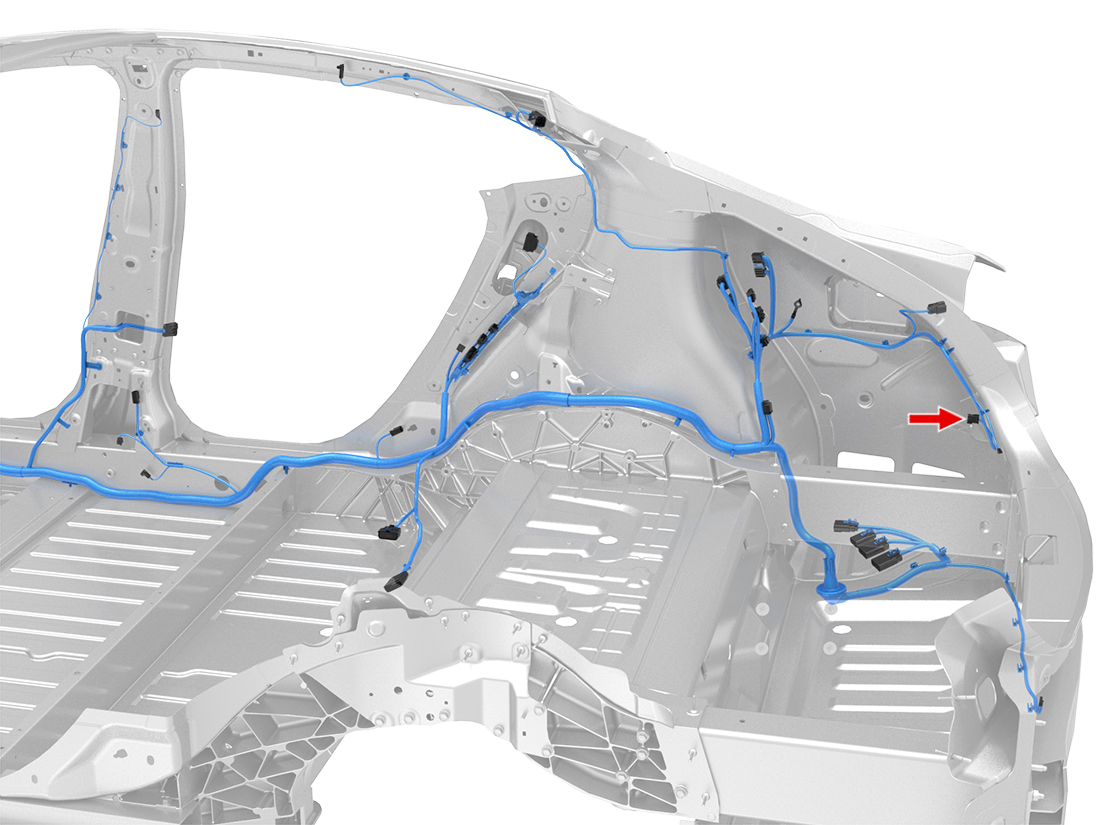

Location:
Connector Detail: molex_34796-0401
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | DB | 1.5 |
| 2 | DB/BK | 1.5 |
2012-2020 Model S Connector Reference
