X921F - s-rhd-sop3

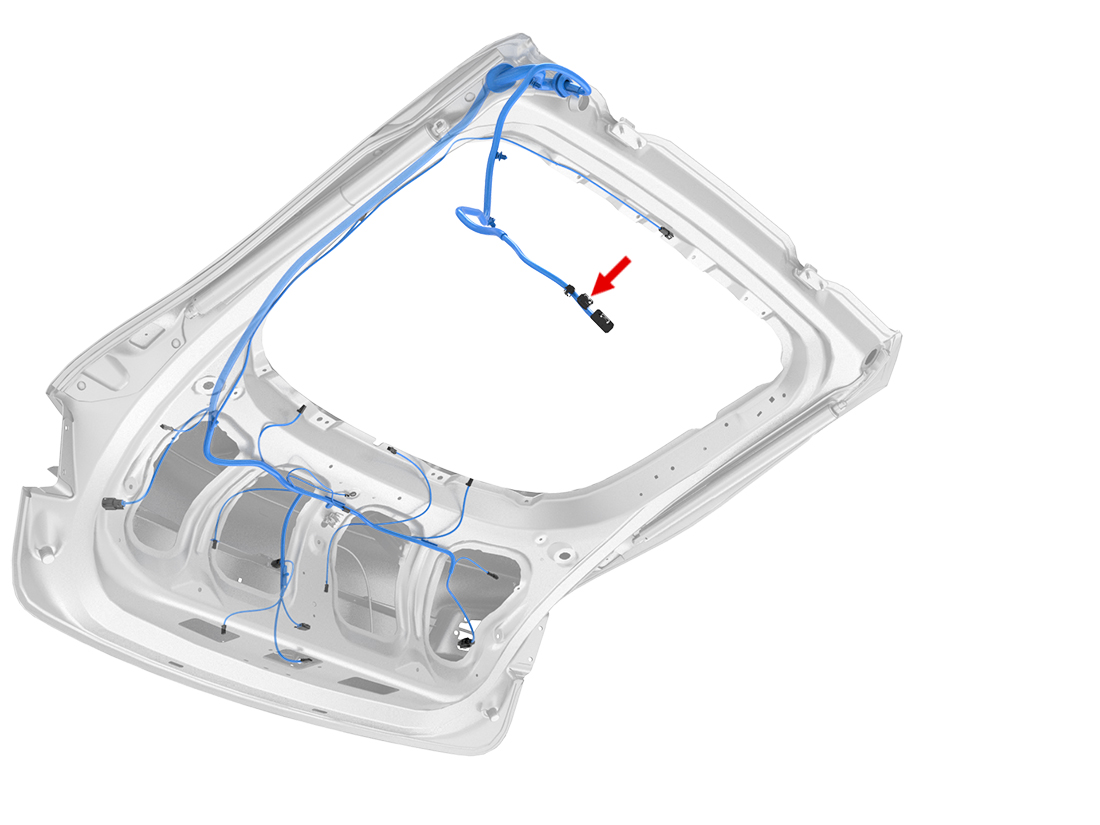

Location:
Connector Detail: sumitomo_6098-3917
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK/WH | 0.5 |
| 2 | TN/DG | 0.5 |
| 3 | TN/OG | 0.5 |
| 4 | VT/WH | 0.5 |
| 5 | VT/GY | 0.5 |
| 6 | VT/LG | 0.5 |
| 8 | GY/WH | 0.35 |
| 9 | VT/DG | 0.35 |
| 11 | DB/WH | 0.5 |
| 12 | TN/DB | 0.5 |
| 13 | LG/BN | 0.5 |
