X022 - s-rhd-sop4

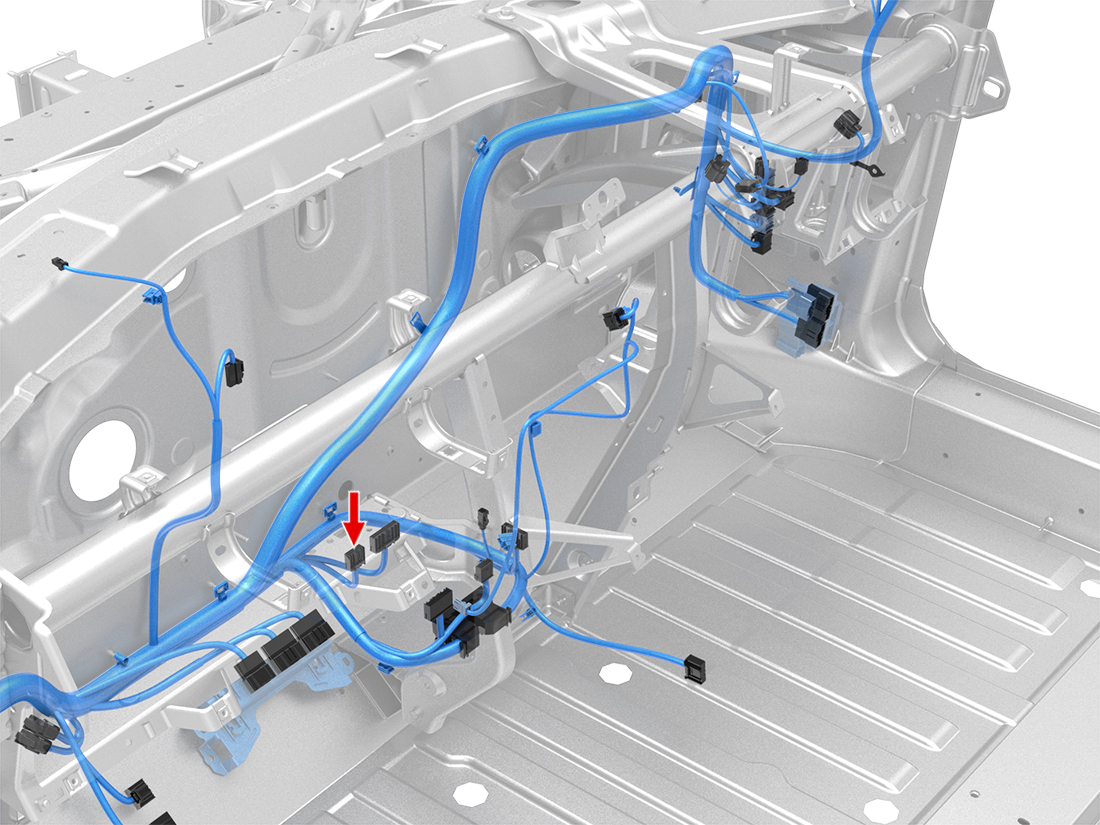

Location:
Connector Detail: jae_mx34020sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/BK | 0.5 |
| 4 | WH/VT | 0.35 |
| 5 | VT/GY | 0.35 |
| 6 | BK | 0.35 |
| 7 | VT/GY | 0.35 |
| 9 | WH/BN | 0.35 |
| 10 | TN | 0.35 |
| 11 | LG | 0.35 |
| 12 | GY/WH | 0.35 |
| 14 | WH | 0.35 |
| 15 | GY | 0.35 |
| 16 | GY/YE | 0.35 |
| 17 | OG/WH | 0.35 |
| 18 | WH | 0.35 |
| 19 | GY | 0.35 |
| 20 | RD | 0.35 |
