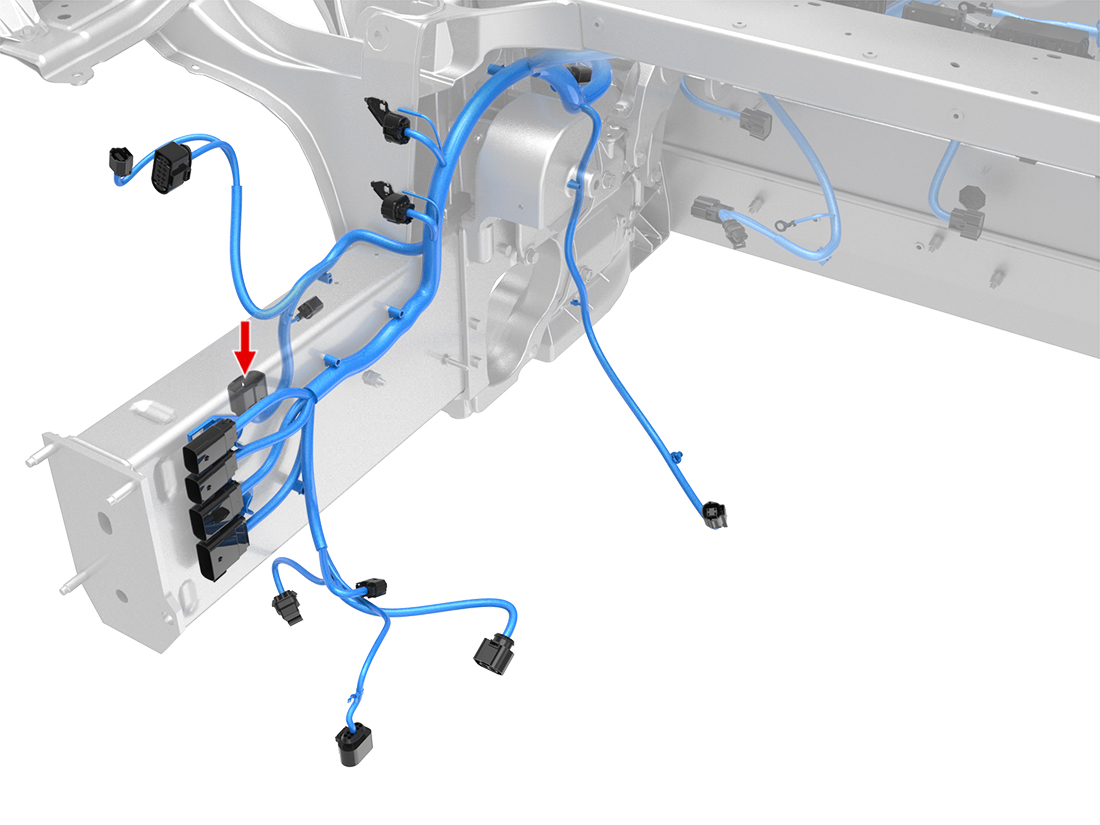

X081 - s-rhd-sop4
Location:
Connector Detail: sumitomo_6189-0588
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE/BN | 3 |
| 2 | LG/RD | 0.35 |
| 3 | BK | 3 |
