X085A - s-rhd-sop4

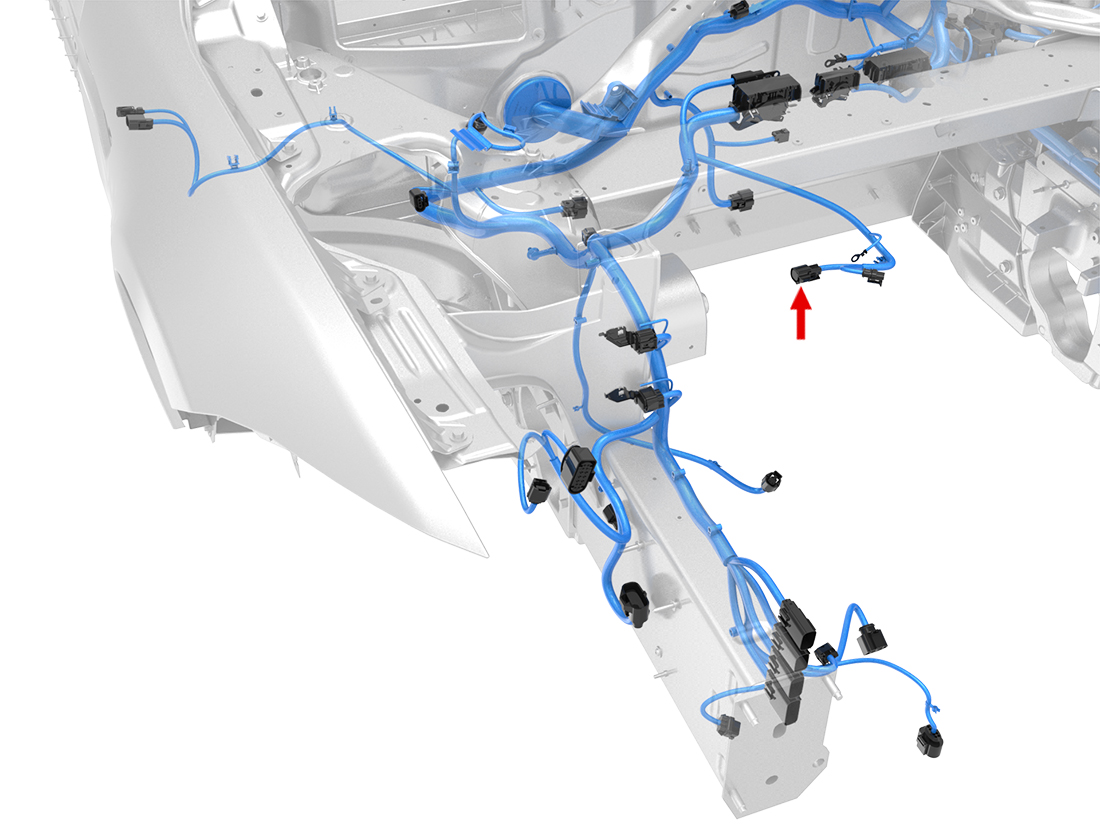

Location:
Connector Detail: molex_33472-0401
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/DB | 0.5 |
| 2 | WH/RD | 0.5 |
| 3 | RD | 0.5 |
| 4 | BK | 0.5 |
2012-2020 Model S Connector Reference
