X102 - s-rhd-sop4

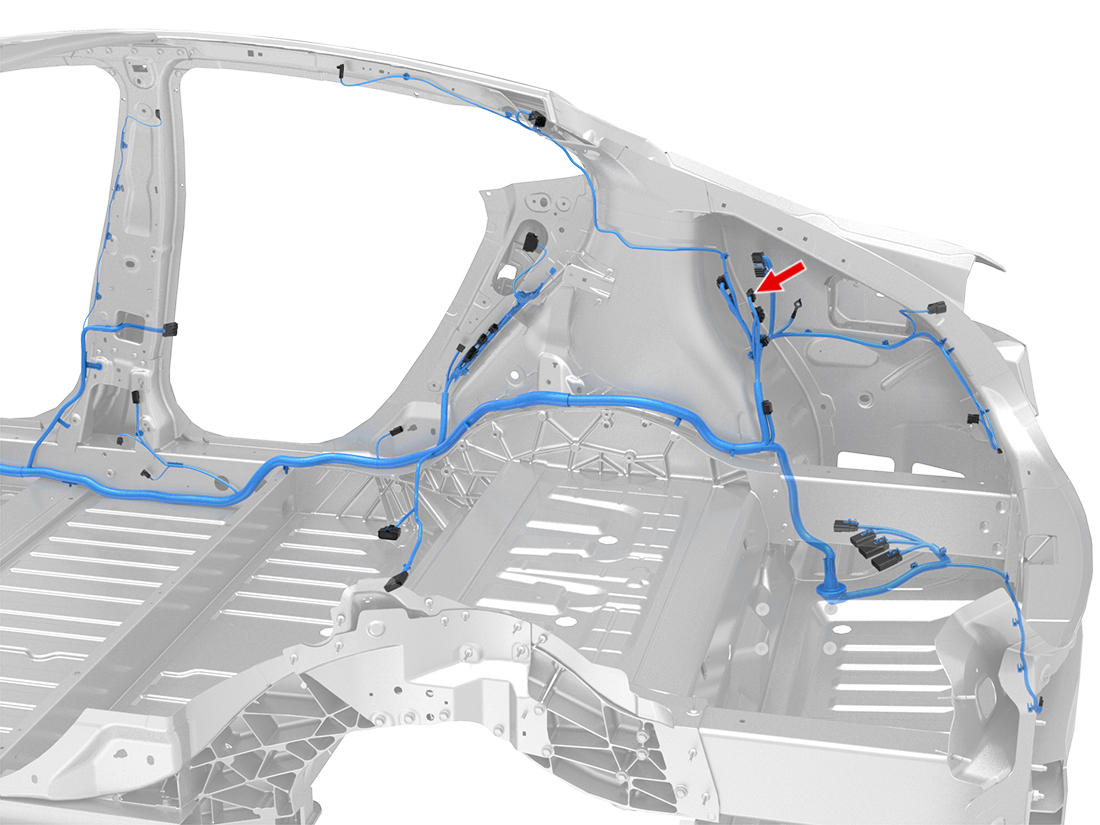

Location:
Connector Detail: jae_mx34020sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 3 | WH/DG | 0.35 |
| 5 | GY | 0.5 |
| 6 | WH | 0.5 |
| 7 | VT/GY | 0.5 |
| 8 | WH/DG | 0.5 |
| 13 | DG | 0.35 |
