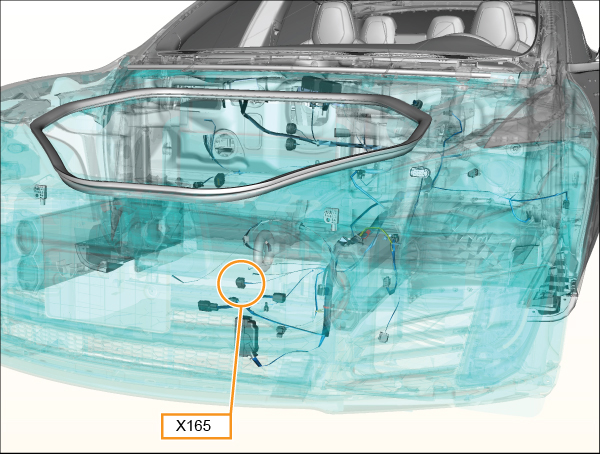

X165 - s-rhd-sop4
Location:
Connector Detail: lear_19214000001
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 13 |
| 2 | BK | 19 |
2012-2020 Model S Connector Reference
