X181 - s-rhd-sop4

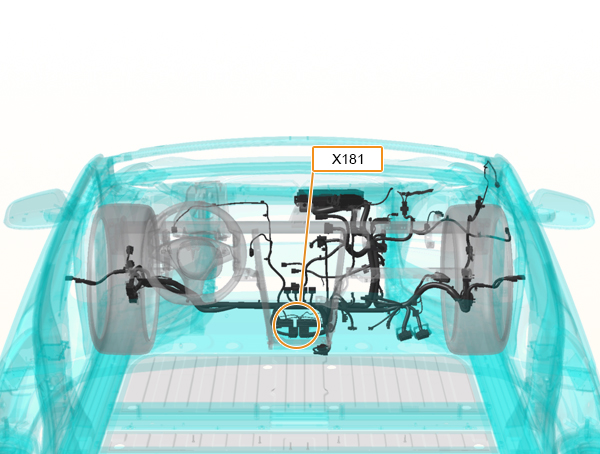

Location:
Connector Detail: amp_7-967313-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 5 | WH/BK | 0.5 |
| 6 | LB | 0.5 |
| 7 | WH/RD | 0.5 |
| 8 | BN | 0.5 |
| 9 | WH/DG | 0.5 |
| 11 | BK | 0.5 |
| 12 | BN/BK | 0.5 |
| 14 | RD/OG | 0.35 |
| 15 | LG/WH | 0.5 |
| 16 | GY | 0.5 |
| 18 | WH/DB | 0.5 |
| 19 | WH/BK | 0.5 |
| 21 | BK | 1 |
| 22 | DB | 0.5 |
| 23 | GY | 0.5 |
| 24 | GY/YE | 0.5 |
| 27 | LG | 0.5 |
| 28 | BN | 0.5 |
| 29 | TN/BK | 0.5 |
| 34 | BN/GY | 0.5 |
| 37 | TN | 0.5 |
| 43 | LG/WH | 0.5 |
| 45 | WH/DB | 0.5 |
| 46 | WH | 0.5 |
| 47 | RD/WH | 1 |
