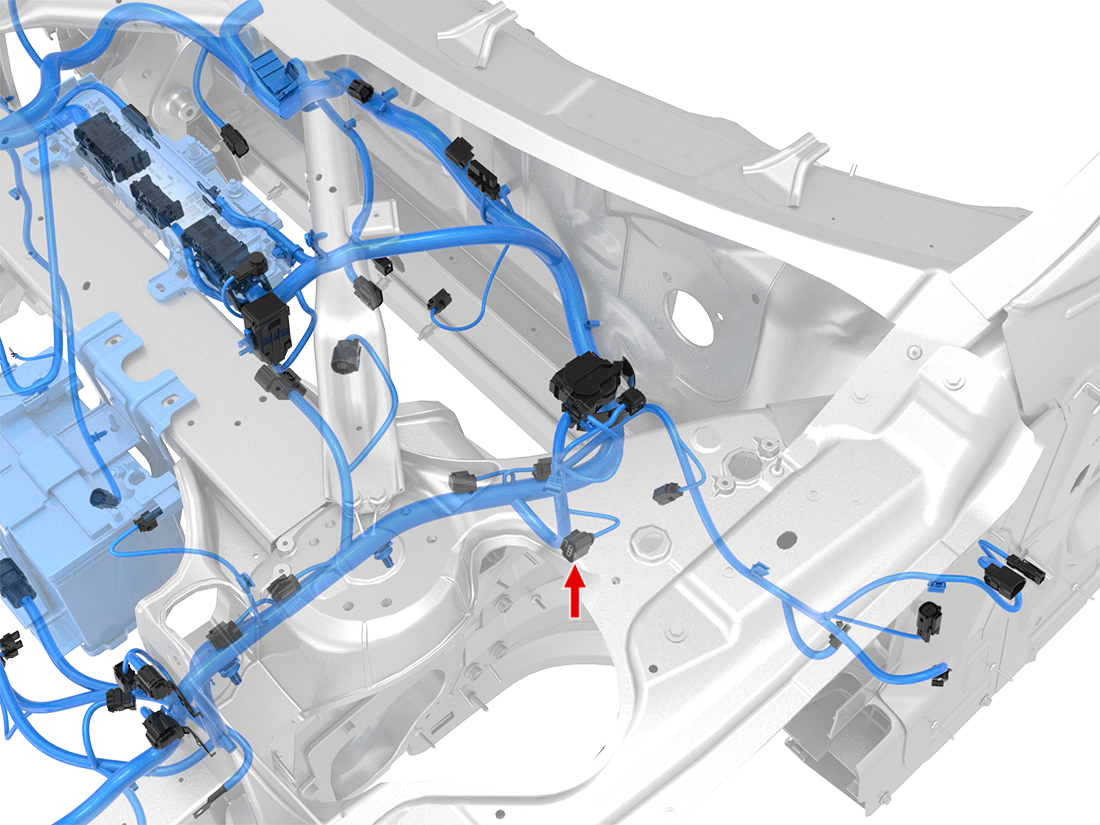

X182 - s-rhd-sop4
Location:
Connector Detail: fep_42511400
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | LB | 0.5 |
| 2 | BN/GY | 0.5 |
| 3 | DB/GY | 0.5 |
2012-2020 Model S Connector Reference
