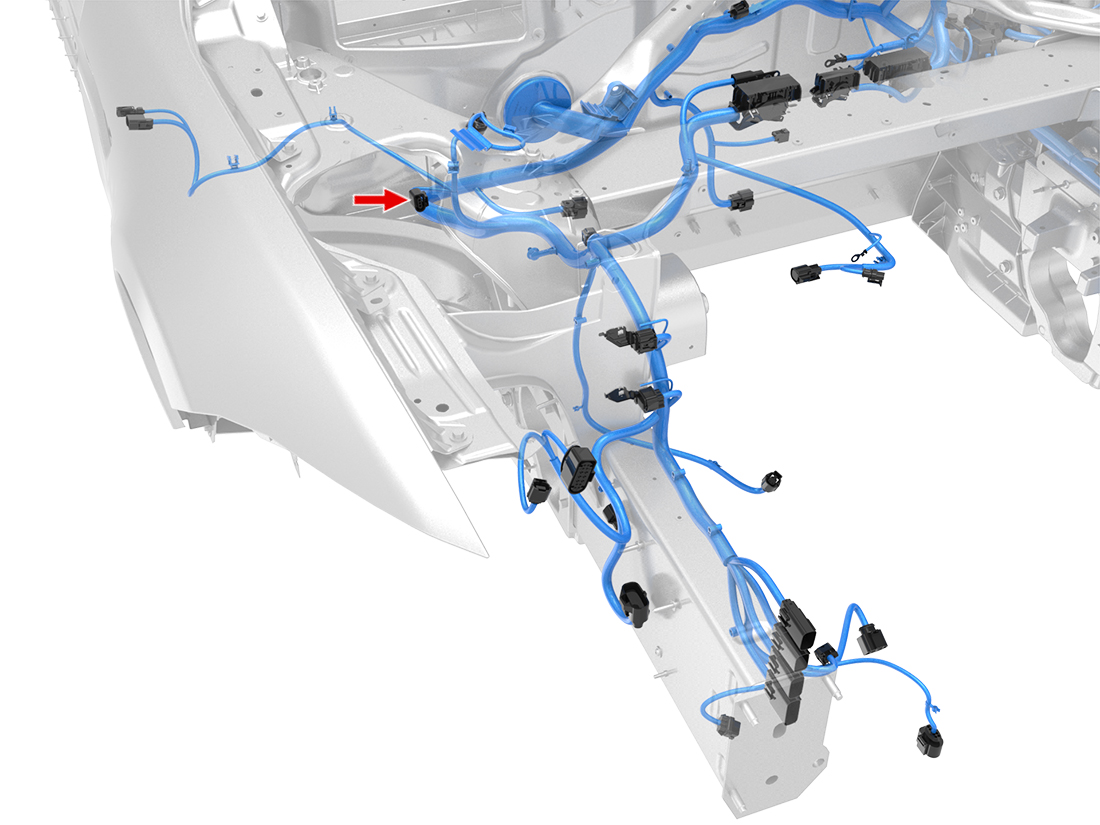

X183 - s-rhd-sop4
Location:
Connector Detail: fep_42511400
Gender: UNSPEC
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/BK | 0.5 |
| 2 | BN/YE | 0.5 |
| 3 | DB/PK | 0.5 |
