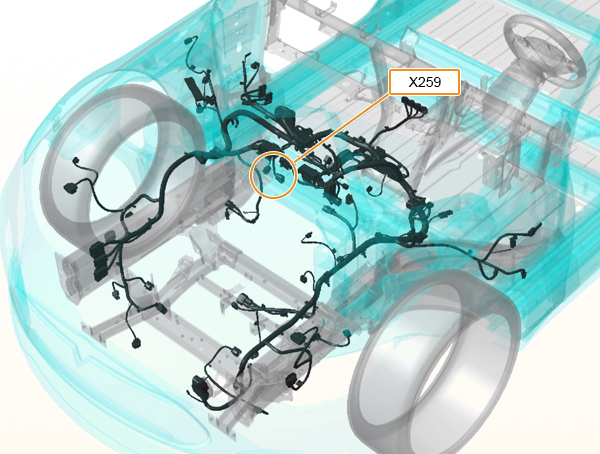

X259 - s-rhd-sop4
Location:
Connector Detail: sumitomo_6189-1105
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/WH | 1 |
| 2 | BK | 1 |
| 3 | GY/YE | 0.5 |
| 4 | GY | 0.5 |
