X436 - s-rhd-sop4

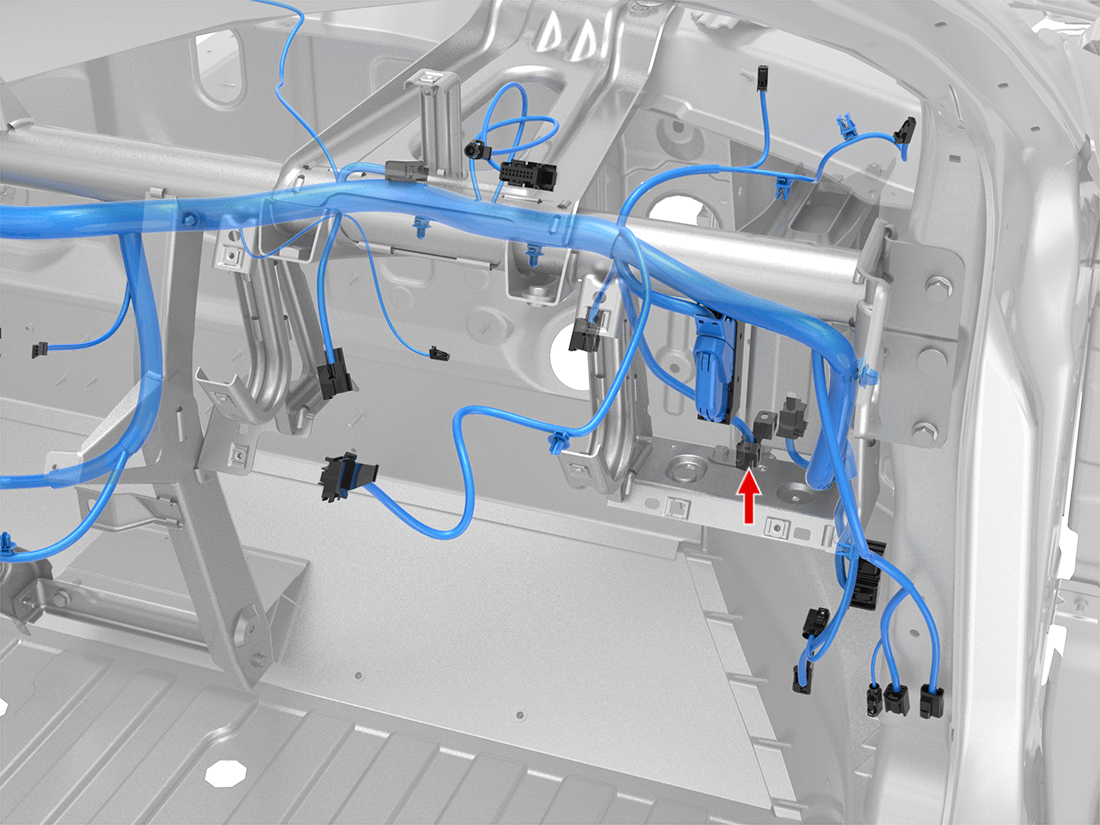

Location:
Connector Detail: delphi_12110250
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/DG | 0.5 |
| 4 | BK | 0.5 |
| 5 | BK | 0.5 |
| 6 | RD/WH | 0.5 |
| 7 | RD | 0.5 |
| 9 | DG | 0.5 |
| 14 | DB | 0.5 |
| 16 | RD/WH | 0.35 |
