X437A - s-rhd-sop4

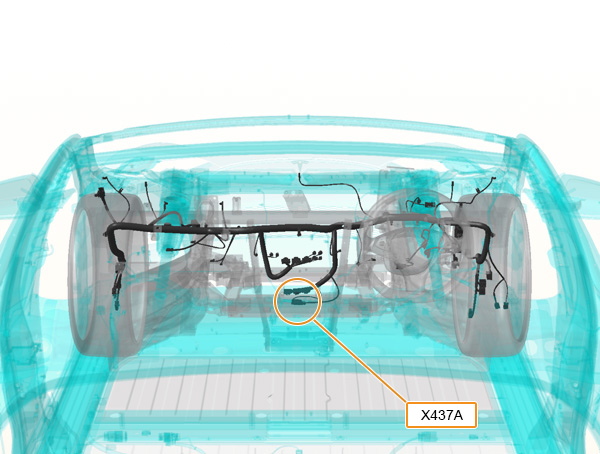

Location:
Connector Detail: sumitomo_6098-5620
Gender:
Color: BU
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/WH | 0.35 |
| 2 | VT/GY | 0.35 |
| 3 | GY | 0.35 |
| 6 | RD | 0.5 |
| 9 | WH/BN | 0.35 |
| 10 | TN | 0.35 |
| 13 | WH/DG | 0.35 |
| 14 | DG | 0.35 |
| 18 | WH/RD | 0.35 |
| 19 | RD | 0.35 |
| 20 | BK | 0.35 |
