X562 - s-rhd-sop4

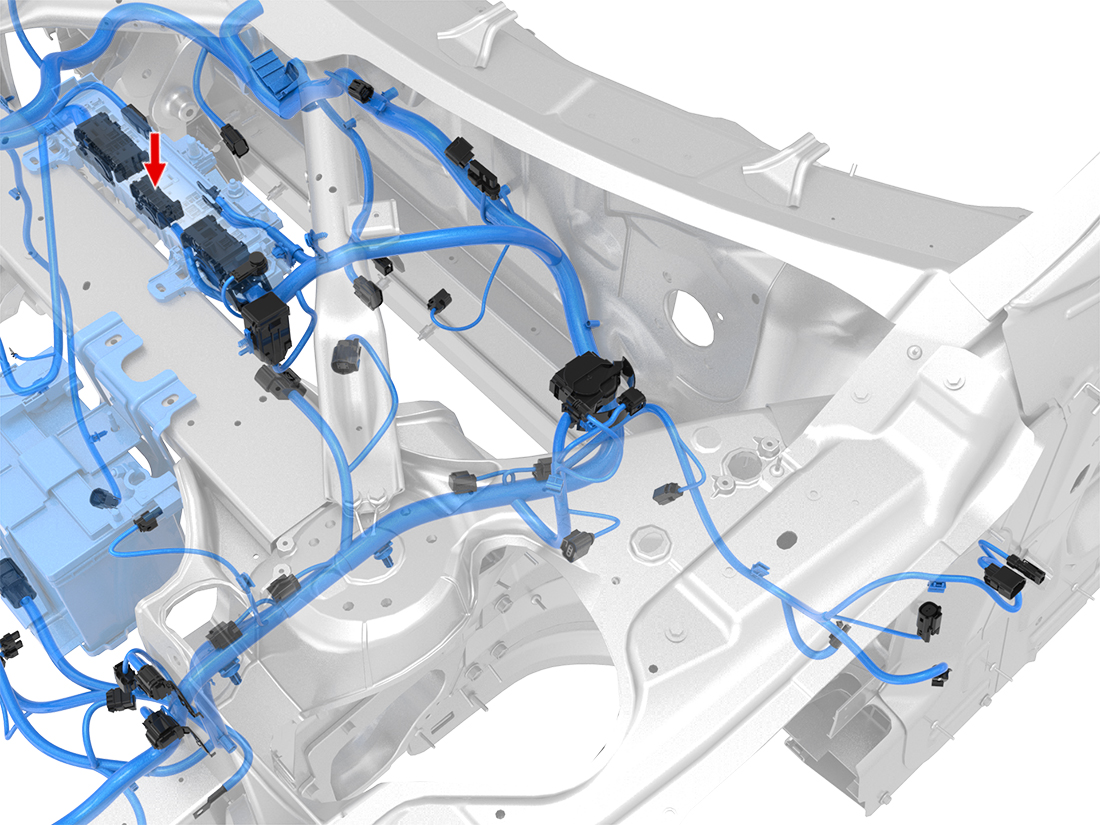

Location:
Connector Detail: delphi_15547106
Gender:
Color:
| Cav | Col | Gauge |
|---|---|---|
| 2 | OG/VT | 0.5 |
| 3 | BN | 1 |
| 5 | WH/VT | 0.5 |
| 6 | VT | 0.5 |
| 7 | WH/DB | 0.5 |
| 8 | DB | 0.5 |
| 9 | WH/DB | 0.5 |
| 10 | WH | 2 |
| 12 | BN | 0.5 |
| 13 | OG | 0.5 |
| 14 | OG | 0.5 |
| 15 | RD/BK | 1 |
| 20 | BN | 1 |
