X774 - s-rhd-sop4

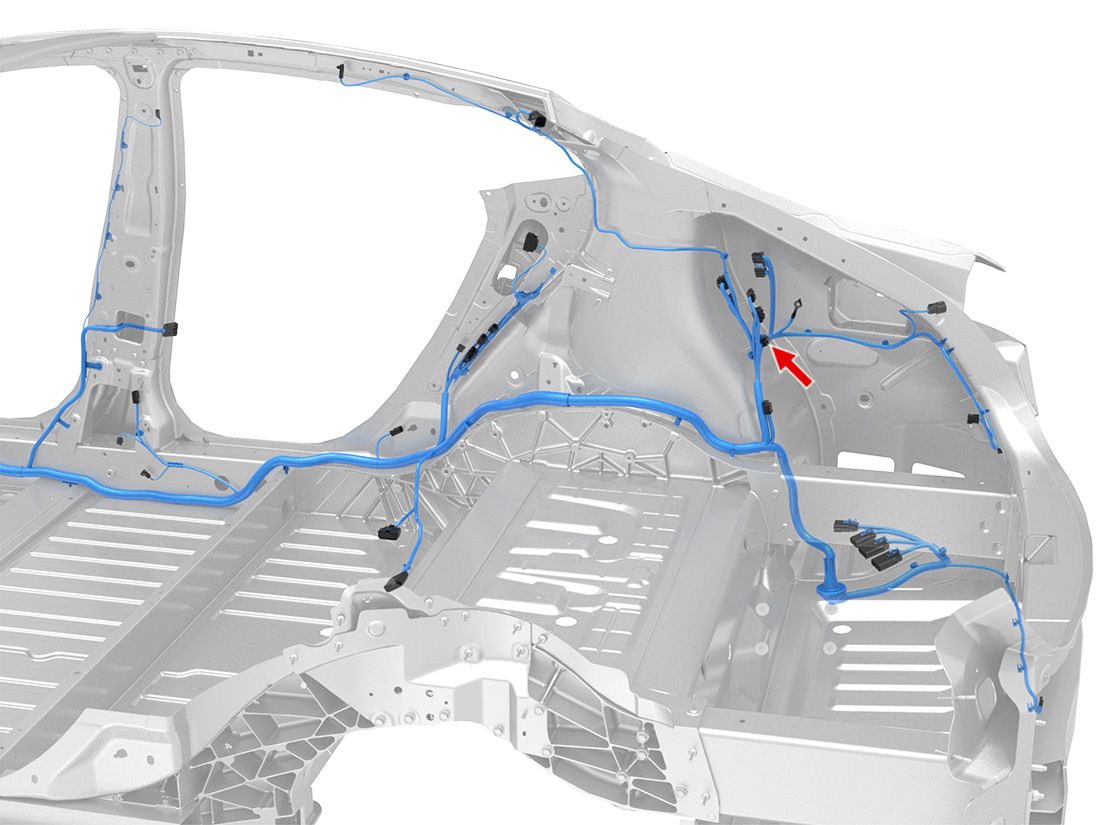

Location:
Connector Detail: sumitomo_6098-3927
Gender:
Color: BU
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/DG | 0.35 |
| 2 | WH/DG | 0.35 |
| 3 | WH/DG | 0.35 |
| 4 | WH/DG | 0.35 |
| 5 | WH/BN | 0.35 |
| 6 | WH/BN | 0.35 |
| 7 | WH/BN | 0.35 |
| 8 | WH/RD | 0.35 |
| 9 | WH/RD | 0.5 |
| 10 | WH/RD | 0.35 |
| 11 | WH/RD | 0.35 |
| 12 | DG | 0.35 |
| 13 | DG | 0.35 |
| 14 | DG | 0.35 |
| 15 | DG | 0.35 |
| 16 | TN | 0.35 |
| 17 | TN | 0.35 |
| 18 | TN | 0.35 |
| 19 | RD | 0.35 |
| 20 | RD | 0.5 |
| 21 | RD | 0.35 |
| 22 | RD | 0.35 |
