X775 - s-rhd-sop4

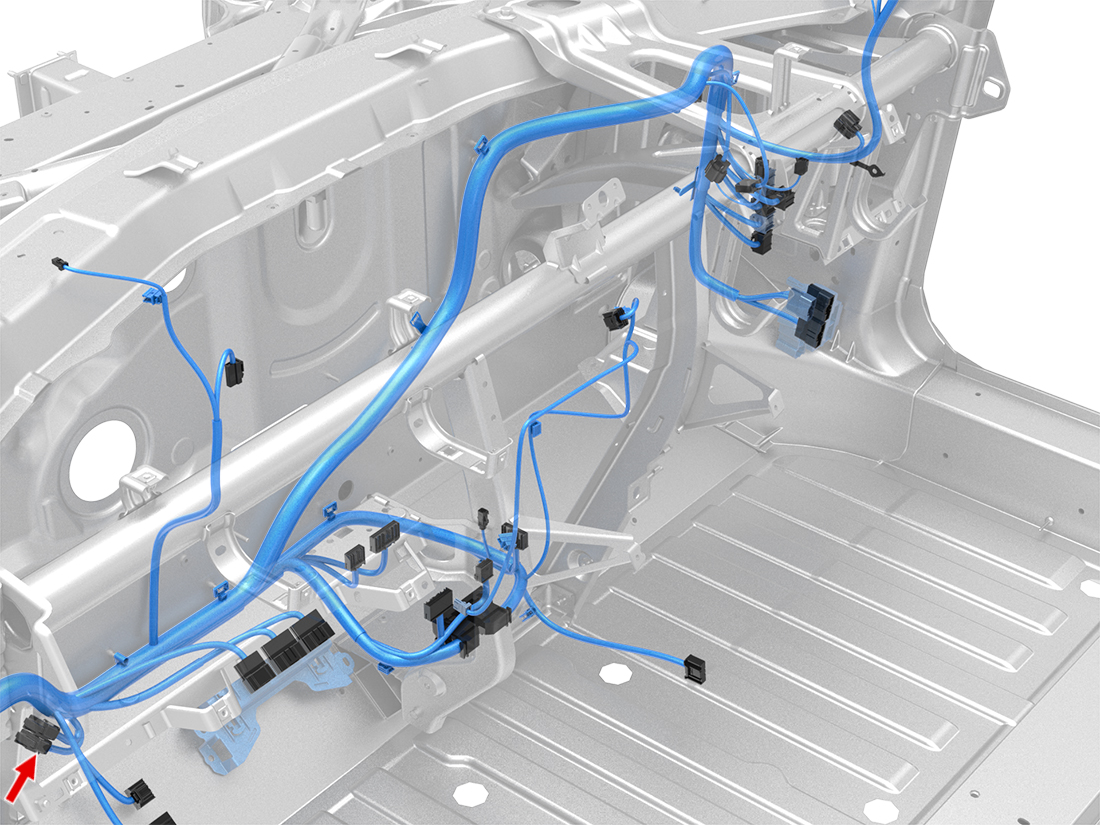

Location:
Connector Detail: sumitomo_6098-3926
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/BN | 0.35 |
| 2 | WH/BN | 0.35 |
| 3 | WH/BN | 0.35 |
| 4 | WH/BN | 0.35 |
| 5 | WH/BN | 0.35 |
| 6 | WH/BN | 0.5 |
| 7 | DG | 0.5 |
| 8 | DG | 0.35 |
| 9 | DG | 0.35 |
| 10 | DG | 0.35 |
| 12 | TN | 0.35 |
| 13 | TN | 0.35 |
| 14 | TN | 0.35 |
| 15 | TN | 0.35 |
| 16 | TN | 0.35 |
| 17 | TN | 0.5 |
| 18 | LG/WH | 0.5 |
| 19 | WH/DG | 0.35 |
| 20 | WH/DG | 0.35 |
| 21 | WH/DG | 0.35 |
