X930F - s-rhd-sop4

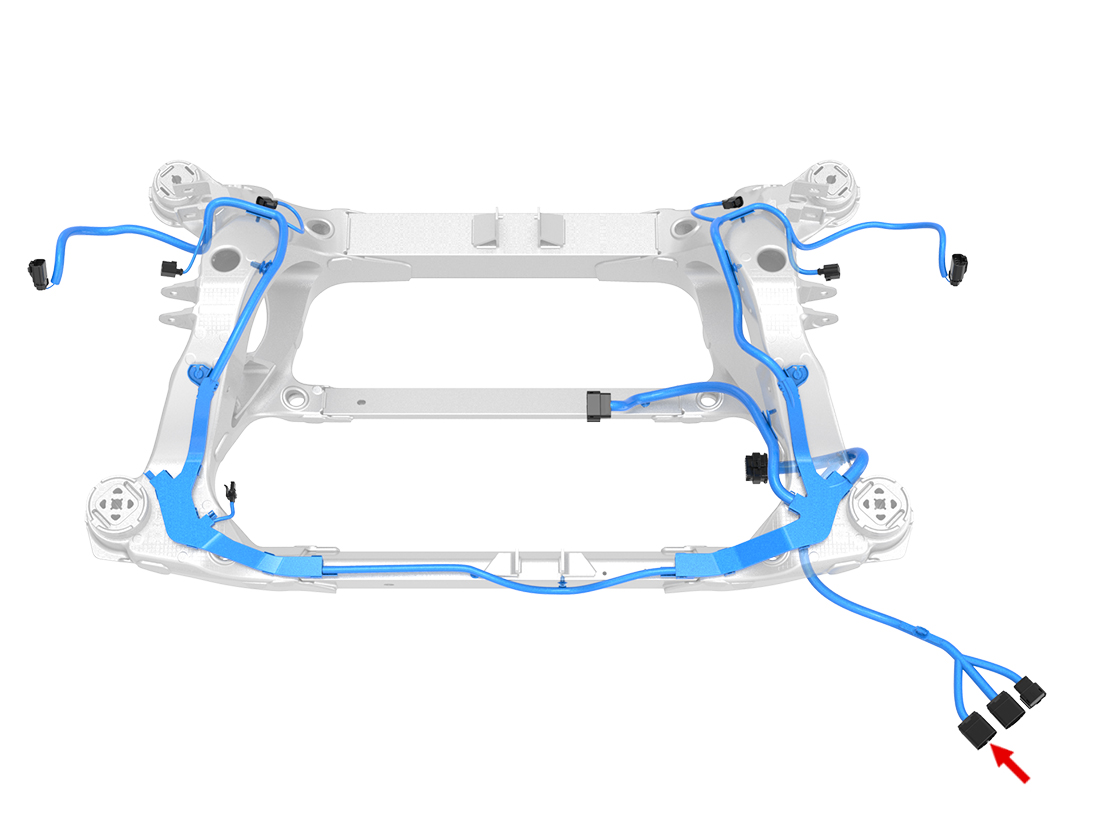

Location:
Connector Detail: fci_55251400
Gender: REC-STD
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY | 2 |
| 2 | WH | 0.5 |
| 6 | GY | 0.5 |
| 7 | RD/WH | 2 |
| 8 | BK/WH | 2 |
| 9 | WH/DG | 0.5 |
| 13 | VT/GY | 0.5 |
| 14 | VT/BK | 2 |
