X932F - s-rhd-sop4

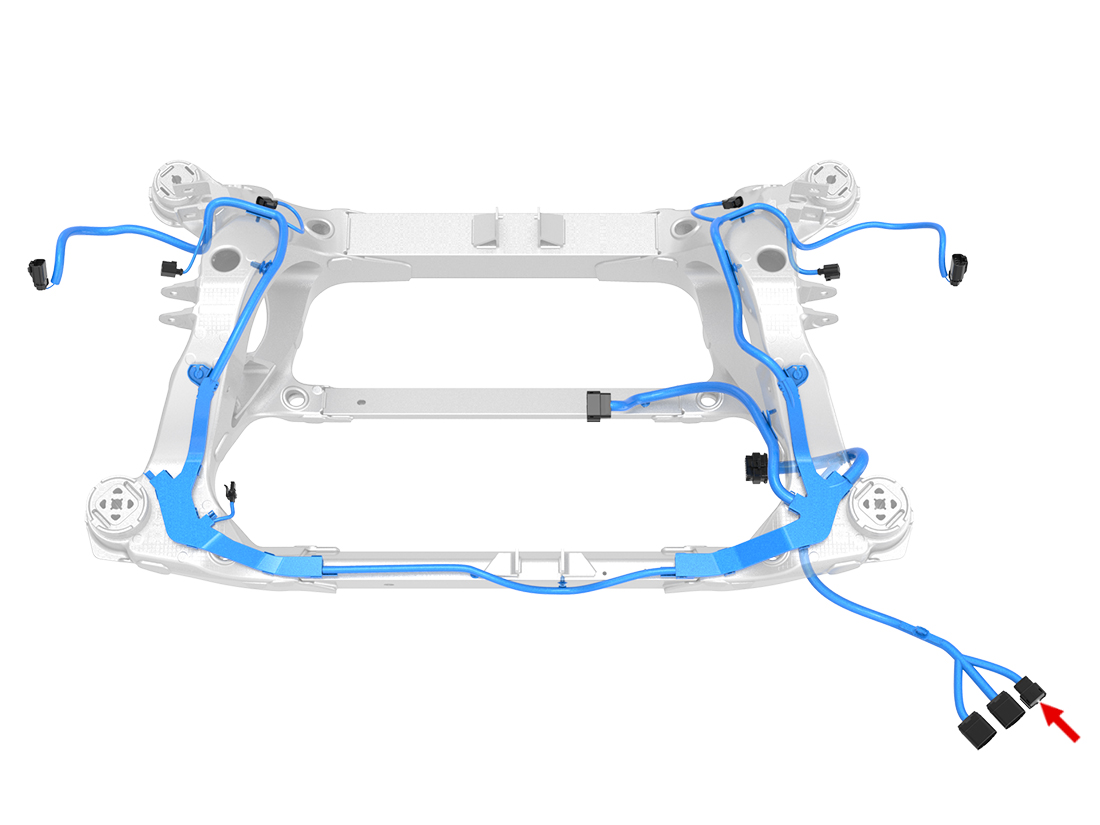

Location:
Connector Detail: molex_33472-1253
Gender: UNSPEC
Color: Dark Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH | 0.5 |
| 2 | BN/GY | 0.5 |
| 3 | BN | 0.5 |
| 4 | WH/RD | 0.5 |
| 4 | WH/RD | 0.5 |
| 5 | VT/GY | 0.5 |
| 6 | VT | 0.5 |
| 7 | LB | 0.5 |
| 8 | VT/GY | 0.5 |
| 9 | LG | 0.5 |
| 10 | RD | 0.5 |
| 10 | RD | 0.5 |
| 11 | WH | 0.5 |
| 12 | WH/DB | 0.5 |
