X932M - s-rhd-sop4

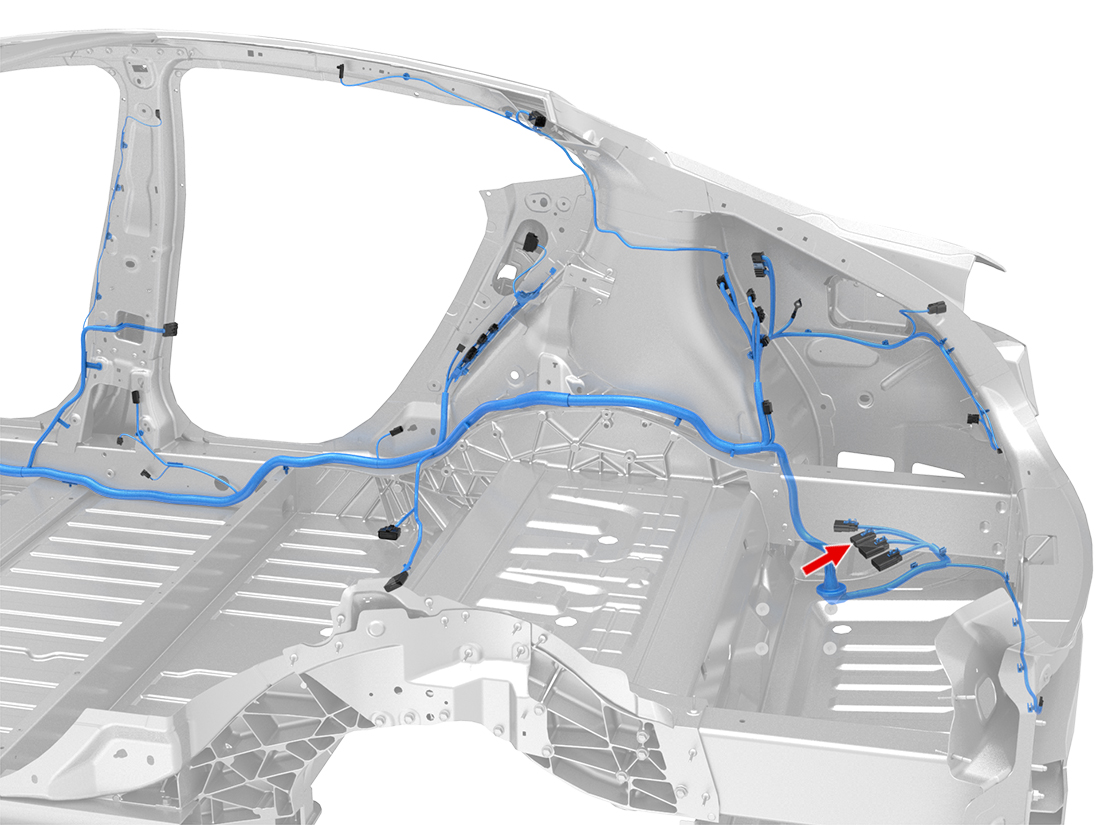

Location:

Connector Detail: molex_33482-1261

Gender: UNSPEC

Color: Dark Gray

Cav	Col	Gauge
1	WH/BK	0.5
2	BN/BK	0.5
3	BN	0.5
4	WH/RD	0.35
5	VT/GY	0.5
6	VT	0.5
7	LB	0.5
8	WH/DB	0.5
9	LG/WH	0.5
10	RD	0.35
11	WH	0.5
12	WH/DB	0.5
