X953F - s-rhd-sop4

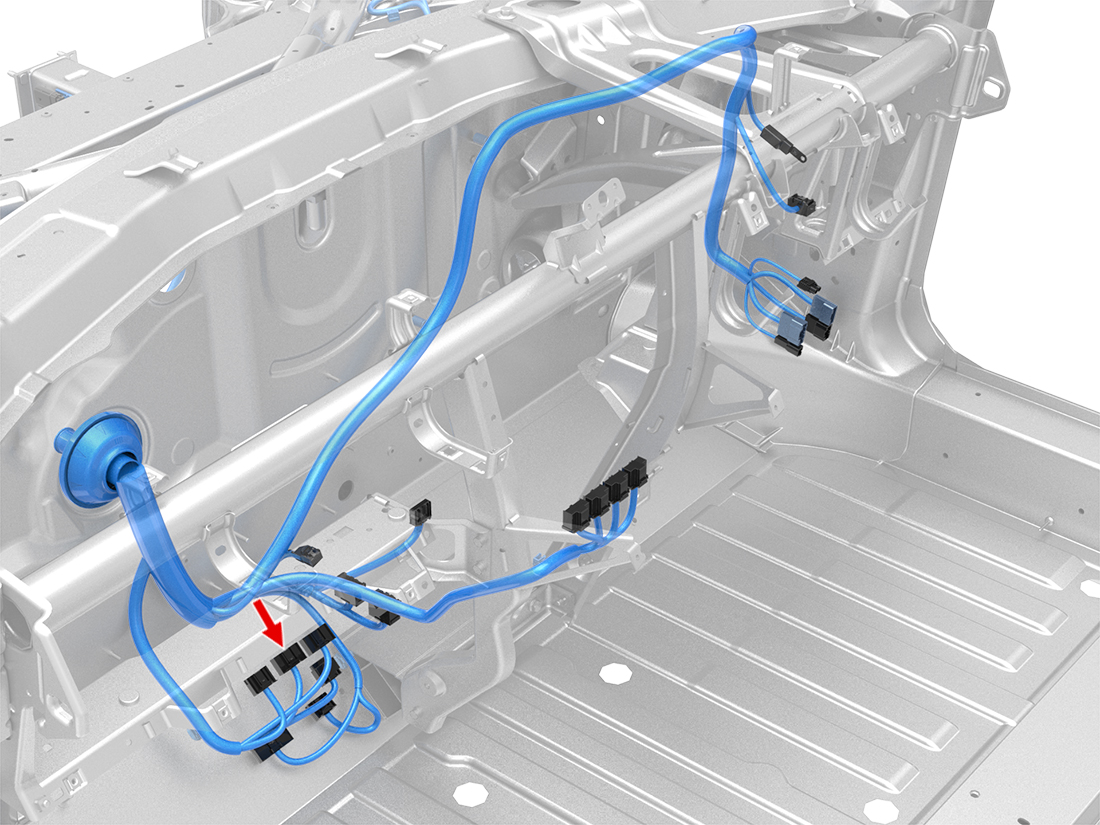

Location:
Connector Detail: yazaki_7287-1918
Gender: UNSPEC
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH | 2 |
| 2 | BN | 0.5 |
| 3 | DG | 0.5 |
| 4 | OG/WH | 0.35 |
| 6 | GY | 0.35 |
| 7 | PK/BK | 0.5 |
| 8 | WH/DG | 0.5 |
| 9 | TN/BK | 0.35 |
| 10 | PK | 0.5 |
| 11 | YE/DG | 0.5 |
| 11 | YE/DG | 0.5 |
| 12 | YE | 0.5 |
| 13 | RD/BK | 0.5 |
| 14 | VT | 1 |
| 17 | LG | 0.35 |
| 18 | GY/YE | 0.35 |
| 19 | TN/BK | 0.35 |
| 20 | DG/BK | 0.5 |
| 21 | DG | 0.5 |
| 22 | RD/DB | 0.5 |
| 23 | DG | 0.35 |
| 24 | RD/OG | 0.35 |
| 25 | RD | 0.35 |
