X955F - s-rhd-sop4

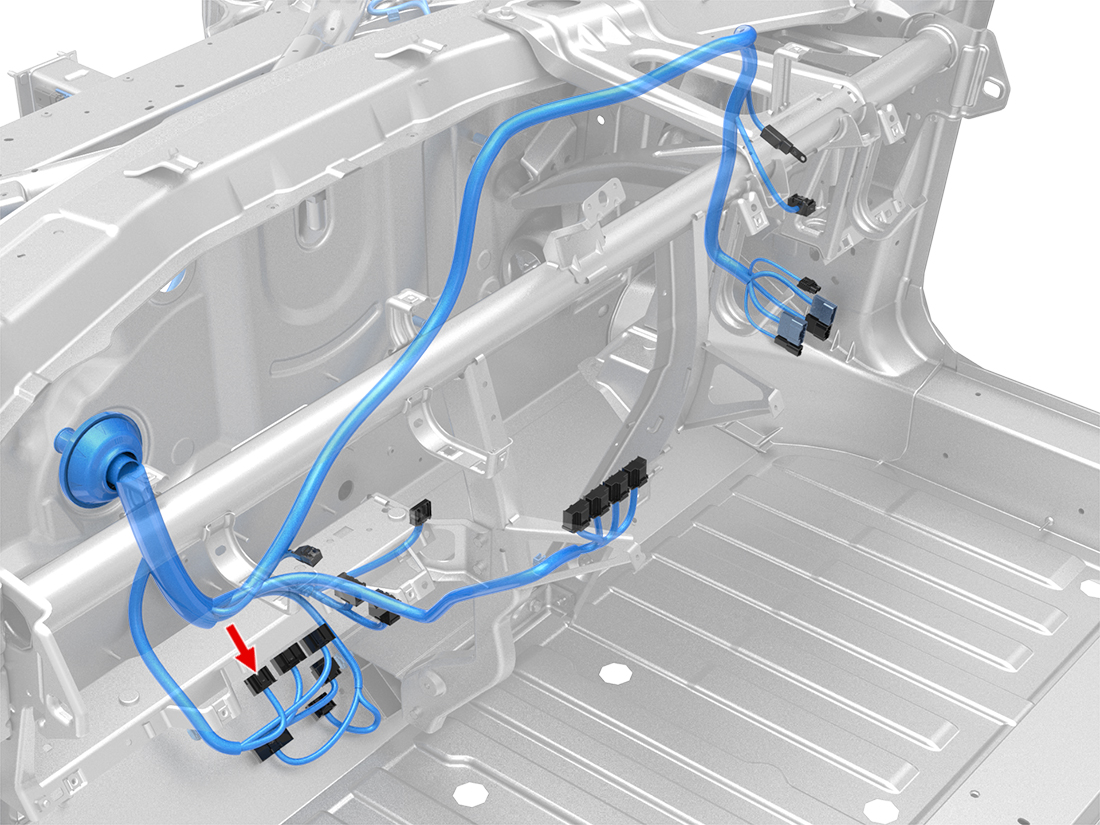

Location:
Connector Detail: sumitomo_6098-5627
Gender:
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT | 1 |
| 2 | GY | 0.35 |
| 3 | DG/VT | 0.35 |
| 4 | VT/GY | 0.35 |
| 5 | WH/BK | 0.5 |
| 6 | WH/DG | 0.35 |
| 7 | PK/BK | 0.5 |
| 8 | GY | 0.35 |
| 9 | RD | 0.35 |
| 10 | WH | 0.5 |
| 11 | RD/BK | 0.5 |
| 12 | VT/WH | 0.75 |
| 13 | GY/WH | 0.35 |
| 14 | RD | 0.35 |
| 15 | LB | 0.5 |
| 16 | DG | 0.35 |
| 17 | DG/BK | 0.5 |
| 18 | DG/VT | 0.35 |
| 19 | VT/GY | 0.35 |
| 20 | VT | 0.75 |
